Add points from list to existing toposolid

Revit
, ,
1

Hi everyone. In Revit 2023 we could easily add points to existing toposurface from csv file or from list of points in Dynamo. Does anyone know if there is a node Toposolid.AddPoints or can anyone help me to create a code for this task. It should have 2 inputs : list of points and
toposolid and the output toposolid?

2

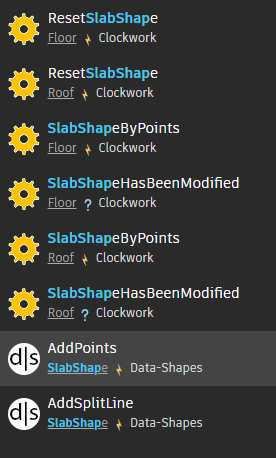

Try clockwork or data-shape. With search keyword: Slabshape
Floor tool can also work for Toposolid.

image276Ă—458 27.3 KB

3

Hi Jin, unfortunately it didn’t work for me in Revit 2024

4

How about this?

image394Ă—353 21.7 KB

5

Hi Vijay,
it doesn’t work.

6

I’m working on Revit 2024. It works.
Download the packages and test them with snapshots so that we can understand your problem.

7

Revit_BVtoZJpFMM
Revit_BVtoZJpFMM775Ă—858 56.9 KB

8

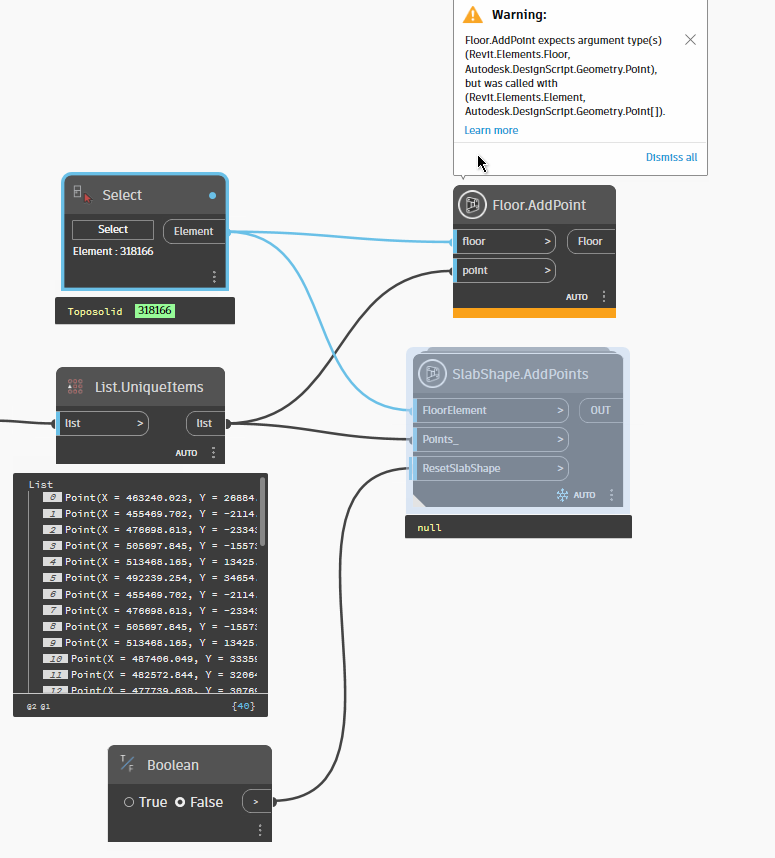

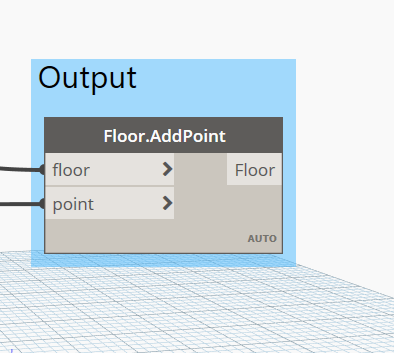

For the Floor.AddPoint node, you click the “>” after the input “point” to use Level and set at @L1 for it. Then right click on the node to set Lacing > Cross Product. Then Run and check

9

For the SlabShape.AddPoints,
You right click to edit custom node.
Then right click on the python script to edit.

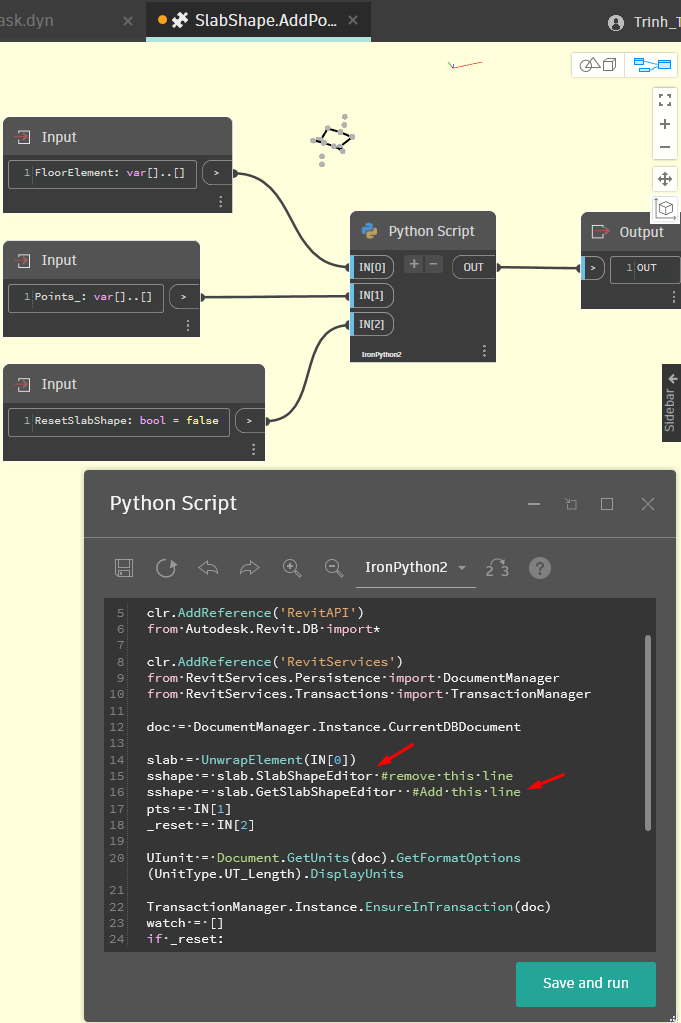

Then edit this line:

image681Ă—1023 50.8 KB

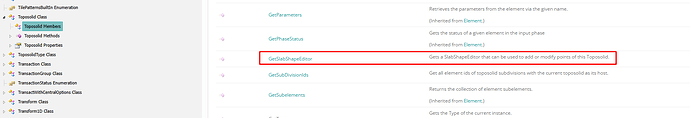

Because the new version works with “GetSlabShapeEditor”
image1760Ă—303 25.9 KB

10

be sure you have the right ironpython package installed as well…maybe

11

delete

12

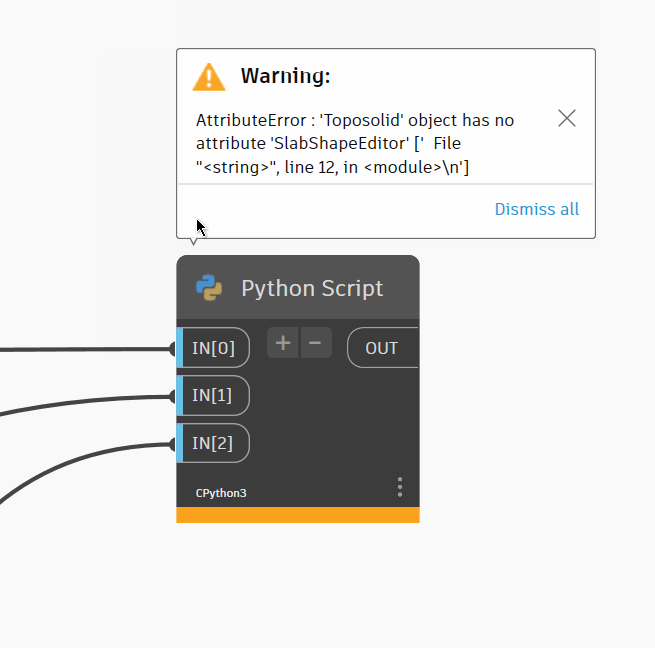

I tried, and it didn’t work.(

image655Ă—648 23.8 KB

image598Ă—675 22.5 KB

Revit_BAMkm3quR2
Revit_BAMkm3quR2644Ă—1032 34 KB

13

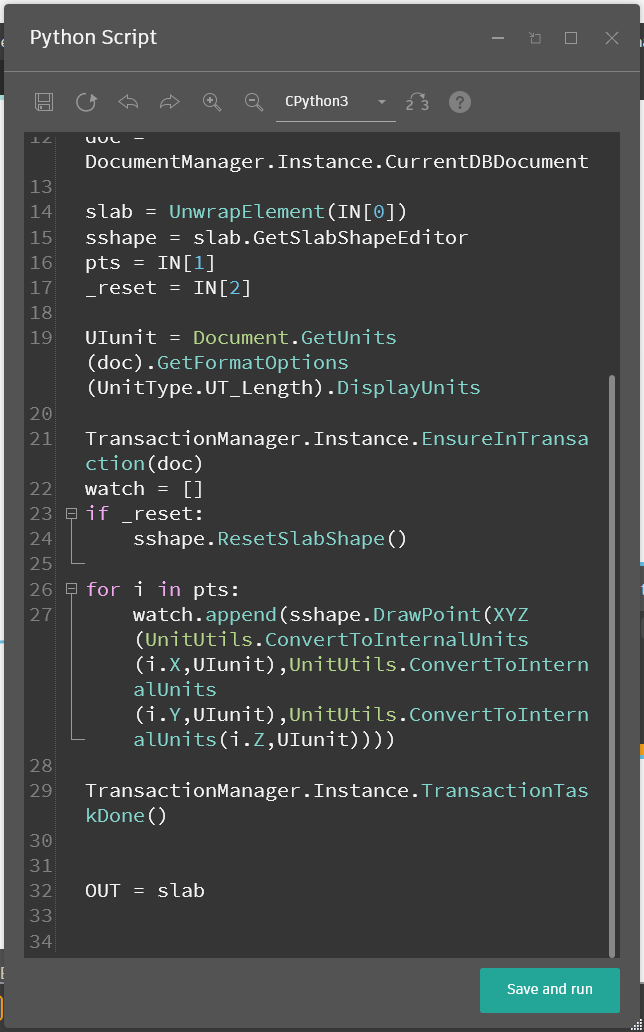

There are some changes in Revit API not only about the SlabShapeEditor but also the Units

import clr
clr.AddReference('RevitAPI')
from Autodesk.Revit.DB import*

clr.AddReference('RevitServices')
from RevitServices.Persistence import DocumentManager
from RevitServices.Transactions import TransactionManager

doc = DocumentManager.Instance.CurrentDBDocument

slab = UnwrapElement(IN[0])
sshape = slab.GetSlabShapeEditor() # For Revit 2024
pts = IN[1]
_reset = IN[2]

#For Revit 2024
intUnitsId = doc.GetUnits().GetFormatOptions(SpecTypeId.Length).GetUnitTypeId()

TransactionManager.Instance.EnsureInTransaction(doc)
watch = []
if _reset:
	sshape.ResetSlabShape()

for i in pts:
	watch.append(sshape.DrawPoint(XYZ(UnitUtils.ConvertToInternalUnits(i.X,intUnitsId),UnitUtils.ConvertToInternalUnits(i.Y,intUnitsId),UnitUtils.ConvertToInternalUnits(i.Z,intUnitsId))))

TransactionManager.Instance.TransactionTaskDone()


OUT = slab
2 Likes
14

Jin, you are amazing. This worked, huge thank you!

1 Like
15

Hello can u pls explain what to be feed in “_reset = IN[2]”. It will be Boolean value?Thanks in advance

16

It’s a reset toggle using Boolean value in case dynamo do not run when no input changes. So it’s a “fake change” to dynamo rerun.
Without it, you need to freeze and run and unfreeze it and run again.
Actually, I do not deeply understand it as technical user. It’s just from my experiences.
I hope it helps!
