Rotate newly created generic annotation family

Packages
1

Hello, friends, I want to do the following:

  1. Create an instance of a generic annotation family.
  2. Immediately rotate newly created instance.
    Here is a part of my nodes: If I run this, I will get revit’s error “can’t rotate element into this position”. http://dynamobim.org/forums/topic/rotating-family-instances/
2

Hi Tuuletin,

I think your “Family Instance” should have rotation parameter.

3

Not sure how to accomplish this in Dynamo, but you might also consider rotating the UCS before the GA is placed.

4

Hi,

You’ll most likely need a “Transaction.End” node between “FI.ByPointInView” and “FI.SetRotation”.

5

Kulkul
Thought about that the first time, but didn’t want to make a very simple family a bit more complicated.
Greg McDowell
Don’t think, this would have helped, because I tried also rotation based on vector (via python). Seems, vectors and UCSes are something a bit “similar” :з
Dimitar Venkov

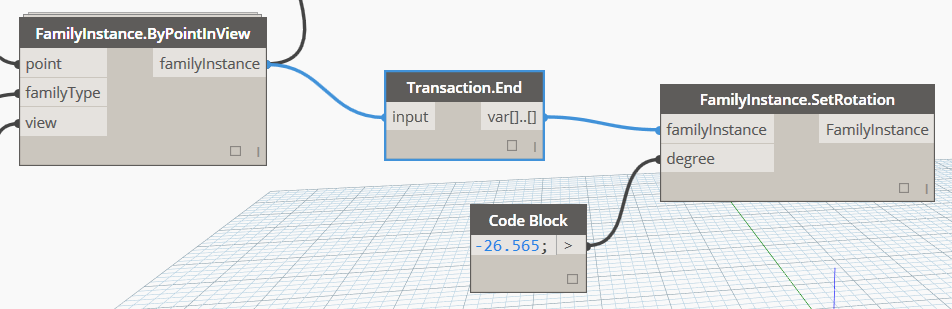

Thank you, friend! This absolutely helped! Now the nodes look like:

Image 410
Image-410.png952×309 64.7 KB
Thanks to everyone!
