Well this is what i got so far.
Seems like something is working but not as it should.
i tried placing a simple generic family at the calculation points for my room height calculation.
But they all end up at the bottom around the same region (see screenshot).
any ideas?
i also wierdly seems to clash alot with a beamtype not with floors wich i find strange as well.
To recap the idea is to retrieve the roomheight in a linked model by raybouncing from the roombase point in the Z-direction and then calculate the diffence.
so the blocks of the base points should ba all over the place instead of in one point.
# =======================================================================
# IMPORTS
# =======================================================================
import sys
sys.path.append(r'H:\\_GROEPEN\\CAD\\DEV\\Tools\\CMRP')
from pyrevit import script
from pyrevit import UI
from pyrevit import revit
from Autodesk.Revit.UI import *
from Autodesk.Revit.UI.Selection import *
from Autodesk.Revit.DB import *
from Autodesk.Revit.DB.Structure import StructuralType
from CMRPGUI import *
from CMRP import *
# Doc & App
# -----------------------------------------------------------------------
doc = revit.doc
uidoc = revit.uidoc
links = link_selection(doc)
room_points = []
room_Id = []
for link in links:
link = link.GetLinkDocument()
rooms = FilteredElementCollector(link).OfCategory(BuiltInCategory.OST_Rooms).ToElements()
# Get rooms information from linked model
# -----------------------------------------------------------------------
for room in rooms:
if isinstance(room.Location, LocationPoint):
room_points.append(room.Location.Point)
room_Id.append(room.UniqueId)
views = FilteredElementCollector(doc).OfClass(View).WhereElementIsNotElementType().ToElements()
for x in views:
if x.Name == "ray3D":
view = x
break
#Document UI Units
try:
UIunit = Document.GetUnits(doc).GetFormatOptions(UnitType.UT_Length).DisplayUnits
except:
UIunit = Document.GetUnits(doc).GetFormatOptions(SpecTypeId.Length).GetUnitTypeId()
# translation_vector = XYZ(0, 0, 1000)
# # Translate each point in room_points so that it is above the floor
# for i in room_points:
# i = i.Add(translation_vector)

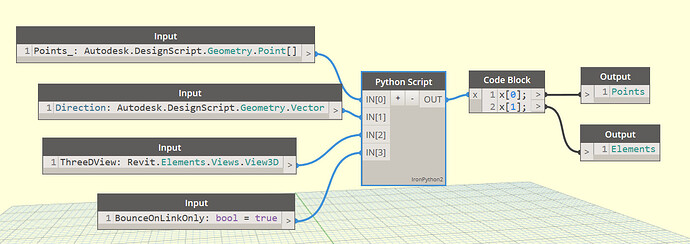

# #Inputs : Points, Direction, 3D View
if isinstance(room_points,list):
points = [XYZ(UnitUtils.ConvertToInternalUnits(i.X,UIunit),UnitUtils.ConvertToInternalUnits(i.Y,UIunit),UnitUtils.ConvertToInternalUnits(i.Z,UIunit)) for i in room_points]
else:
points = [XYZ(UnitUtils.ConvertToInternalUnits(room_points.X,UIunit),UnitUtils.ConvertToInternalUnits(room_points.Y,UIunit),UnitUtils.ConvertToInternalUnits(room_points.Z,UIunit))]
direction = XYZ(0,0,1)
ex = []
pts = []
elems = []
ri = ReferenceIntersector(view)
ri.FindReferencesInRevitLinks = True
# # Find nearest reference for each point and compute height
heights = []
# for p in points:
# ref = ri.FindNearest(p, direction)
# if ref is not None:
# refel = ref.GetReference()
# link_instance = doc.GetElement(refel.ElementId)
# try:
# elem = link_instance.GetLinkDocument().GetElement(refel.LinkedElementId)
# print(elem.Id)
# refp = ref.GetReference().GlobalPoint
# height = UnitUtils.ConvertFromInternalUnits(refp.Z, UIunit) - UnitUtils.ConvertFromInternalUnits(p.Z, UIunit)
# heights.append(height)
# print("Element: {}, Height: {}".format(elem.Name, height))
# except:
# pass
# else:
# heights.append(None)
# print("No reference found")
# # Print calculated heights
# for height, Id in zip(heights, room_Id):
# print(Id)
# print(height)
# ...
def get_type_by_name(type_name):
param_type = ElementId(BuiltInParameter.ALL_MODEL_TYPE_NAME)
f_param = ParameterValueProvider(param_type)
evaluator = FilterStringEquals()
f_rule = FilterStringRule(f_param, evaluator, type_name, True)
filter_type_name = ElementParameterFilter(f_rule)
return FilteredElementCollector(doc).WherePasses(filter_type_name).WhereElementIsElementType().FirstElement()
# element= doc.Create.NewFamilyInstance(pt, symbol, StructuralType.NonStructural)
# ...
# Find nearest reference for each point and compute height
with Transaction(doc, "Place Generic Model Instances") as t:
t.Start()
symbol = get_type_by_name('test-Type1')
if not symbol.IsActive:
symbol.Activate()
for p in points:
# Place a family instance at the original point
instance1 = doc.Create.NewFamilyInstance(p, symbol, StructuralType.NonStructural)
ref = ri.FindNearest(p, direction)
if ref is not None:
refel = ref.GetReference()
link_instance = doc.GetElement(refel.ElementId)
try:
elem = link_instance.GetLinkDocument().GetElement(refel.LinkedElementId)
print(elem.Id)
refp = ref.GetReference().GlobalPoint
# Place a family instance at the detected reference point
instance2 = doc.Create.NewFamilyInstance(refp, symbol, StructuralType.NonStructural)
height = UnitUtils.ConvertFromInternalUnits(refp.Z, UIunit) - UnitUtils.ConvertFromInternalUnits(p.Z, UIunit)
heights.append(height)
print("Element: {}, Height: {}".format(elem.Name, height))
except:
pass
else:
heights.append(None)
print("No reference found")
t.Commit()
print(heights)
