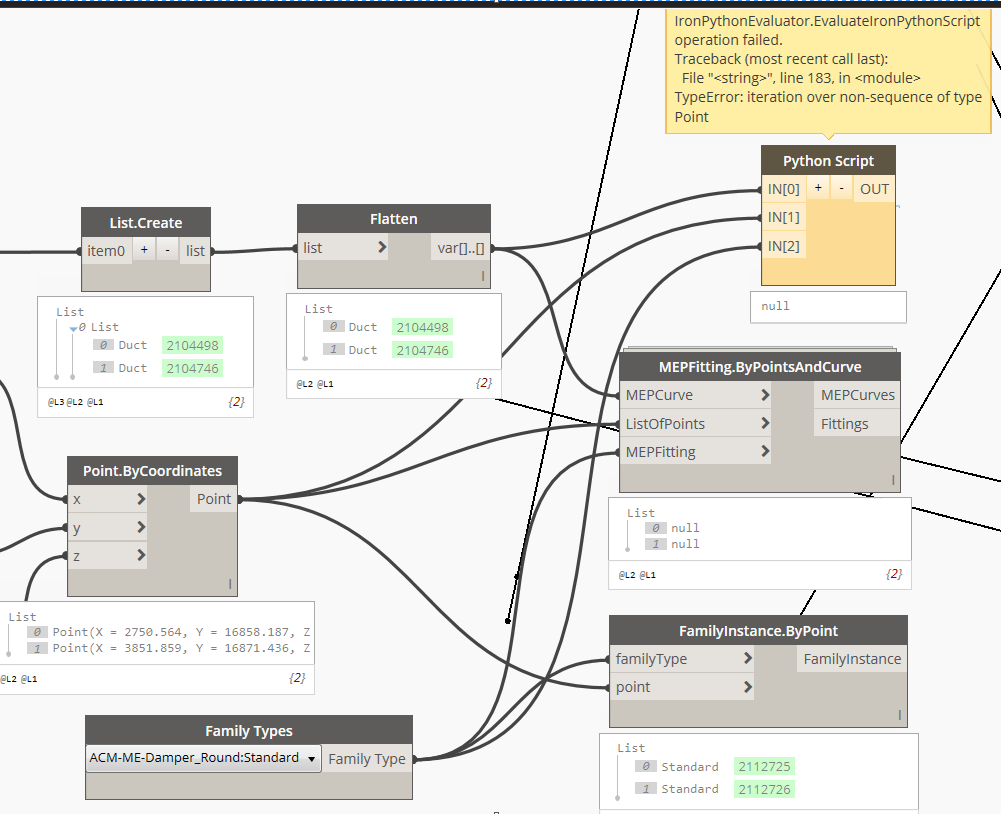

The python is the same as the one in the MEPOver node (I’ve not changed anything), says line 183 but i cant figure out if its that thats not going to work with a vertical duct.
Yes it is a duct accessory, but it works fine with the node on horizontal ductwork.
Python Script.....
import clr
import math
clr.AddReference(“RevitServices”)
import RevitServices
from RevitServices.Persistence import DocumentManager
from RevitServices.Transactions import TransactionManager
doc = DocumentManager.Instance.CurrentDBDocument
clr.AddReference(“RevitAPI”)
from Autodesk.Revit.DB import *
clr.AddReference(“RevitNodes”)
import Revit
clr.ImportExtensions(Revit.Elements)
clr.ImportExtensions(Revit.GeometryConversion)
from System.Collections.Generic import List
if isinstance(IN[0], list):
ducts = UnwrapElement(IN[0])
else:
ducts = [UnwrapElement(IN[0])]
if isinstance(IN[1], list):
points = IN[1]
else:
points = [IN[1]]
if isinstance(IN[2], list):
famtype = UnwrapElement(IN[2])
else:
famtype = [UnwrapElement(IN[2])]
ftl = len(famtype)
def IsParallel(dir1,dir2):
if dir1.Normalize().IsAlmostEqualTo(dir2.Normalize()):
return True
if dir1.Normalize().Negate().IsAlmostEqualTo(dir2.Normalize()):
return True
return False
def measure(startpoint, point):
return startpoint.DistanceTo(point)
def copyElement(element, oldloc, loc):
elementlist = List[ElementId]()
elementlist.Add(element.Id)
OffsetZ = (oldloc.Z - loc.Z)*-1
OffsetX = (oldloc.X - loc.X)*-1
OffsetY = (oldloc.Y - loc.Y)*-1
direction = XYZ(OffsetX,OffsetY,OffsetZ)
newelementId = ElementTransformUtils.CopyElements(doc,elementlist,direction)
newelement = doc.GetElement(newelementId[0])
return newelement
def GetDirection(faminstance):
for c in faminstance.MEPModel.ConnectorManager.Connectors:
conn = c
break
return conn.CoordinateSystem.BasisZ
#global variables for rotating new families
tempfamtype = None
xAxis = XYZ(1,0,0)
def placeFitting(duct,point,familytype,lineDirection):
toggle = False
isVertical = False
global tempfamtype
if tempfamtype == None:
tempfamtype = familytype
toggle = True
elif tempfamtype != familytype:
toggle = True
tempfamtype = familytype
level = duct.ReferenceLevel
width = 4
height = 4
radius = 2
round = False
connectors = duct.ConnectorManager.Connectors
for c in connectors:
if c.ConnectorType != ConnectorType.End:
continue
shape = c.Shape
if shape == ConnectorProfileType.Round:
radius = c.Radius
round = True
break
elif shape == ConnectorProfileType.Rectangular or shape == ConnectorProfileType.Oval:
if abs(lineDirection.Z) == 1:
isVertical = True
yDir = c.CoordinateSystem.BasisY
width = c.Width
height = c.Height
break
point = XYZ(point.X,point.Y,point.Z-level.Elevation)
newfam = doc.Create.NewFamilyInstance(point,familytype,level,Structure.StructuralType.NonStructural)
doc.Regenerate()
transform = newfam.GetTransform()
axis = Line.CreateUnbound(transform.Origin, transform.BasisZ)
global xAxis
if toggle:
xAxis = GetDirection(newfam)
zAxis = XYZ(0,0,1)
if isVertical:
angle = xAxis.AngleOnPlaneTo(yDir,zAxis)
else:
angle = xAxis.AngleOnPlaneTo(lineDirection,zAxis)
ElementTransformUtils.RotateElement(doc,newfam.Id,axis,angle)
doc.Regenerate()
if lineDirection.Z != 0:
newAxis = GetDirection(newfam)
yAxis = newAxis.CrossProduct(zAxis)
angle2 = newAxis.AngleOnPlaneTo(lineDirection,yAxis)
axis2 = Line.CreateUnbound(transform.Origin, yAxis)
ElementTransformUtils.RotateElement(doc,newfam.Id,axis2,angle2)
result = {}
connpoints = []
famconns = newfam.MEPModel.ConnectorManager.Connectors
if round:
for conn in famconns:
if IsParallel(lineDirection,conn.CoordinateSystem.BasisZ) == False:
continue
if conn.Shape != shape:
continue
conn.Radius = radius
connpoints.append(conn.Origin)
else:
for conn in famconns:
if IsParallel(lineDirection,conn.CoordinateSystem.BasisZ) == False:
continue
if conn.Shape != shape:
continue
conn.Width = width
conn.Height = height
connpoints.append(conn.Origin)
result[newfam] = connpoints
return result
def ConnectElements(duct, fitting):
ductconns = duct.ConnectorManager.Connectors
fittingconns = fitting.MEPModel.ConnectorManager.Connectors
for conn in fittingconns:
for ductconn in ductconns:
result = ductconn.Origin.IsAlmostEqualTo(conn.Origin)
if result:
ductconn.ConnectTo(conn)
break
return result
def SortedPoints(fittingspoints,ductStartPoint):
sortedpoints = sorted(fittingspoints, key=lambda x: measure(ductStartPoint, x))
return sortedpoints
ductsout =
fittingsout =
combilist =
TransactionManager.Instance.EnsureInTransaction(doc)
for typ in famtype:
if typ.IsActive == False:
typ.Activate()
doc.Regenerate()
for i,duct in enumerate(ducts):
ListOfPoints = [x.ToXyz() for x in points[i]]
familytype = famtype[i%ftl]
#create duct location line
ductline = duct.Location.Curve
ductStartPoint = ductline.GetEndPoint(0)
ductEndPoint = ductline.GetEndPoint(1)
#get end connector to reconnect later
endIsConnected = False
endrefconn = None
for ductconn in duct.ConnectorManager.Connectors:
if ductconn.Origin.DistanceTo(ductEndPoint) < 5/304.8:
if ductconn.IsConnected:
endIsConnected = True
for refconn in ductconn.AllRefs:
if refconn.ConnectorType != ConnectorType.Logical and refconn.Owner.Id.IntegerValue != duct.Id.IntegerValue:
endrefconn = refconn
#sort the points from start of duct to end of duct
pointlist = SortedPoints(ListOfPoints,ductStartPoint)
ductlist = []
newFittings = []
ductlist.append(duct)
tempStartPoint = None
tempEndPoint = None
lineDirection = ductline.Direction
for i,p in enumerate(pointlist):
output = placeFitting(duct,p,familytype,lineDirection)
newfitting = output.keys()[0]
newFittings.append(newfitting)
fittingpoints = output.values()[0]
tempPoints = SortedPoints(fittingpoints,ductStartPoint)
if i == 0:
tempEndPoint = tempPoints[0]
tempStartPoint = tempPoints[1]
newduct = copyElement(duct,ductStartPoint,tempStartPoint)
duct.Location.Curve = Line.CreateBound(ductStartPoint,tempEndPoint)
ductlist.append(newduct)
combilist.append([duct,newfitting])
combilist.append([newduct,newfitting])
else:
combilist.append([newduct,newfitting])
tempEndPoint = tempPoints[0]
newduct = copyElement(duct,ductStartPoint,tempStartPoint)
ductlist[-1].Location.Curve = Line.CreateBound(tempStartPoint,tempEndPoint)
tempStartPoint = tempPoints[1]
ductlist.append(newduct)
combilist.append([newduct,newfitting])
newline = Line.CreateBound(tempStartPoint,ductEndPoint)
ductlist[-1].Location.Curve = newline
ductsout.append(ductlist)
fittingsout.append(newFittings)
doc.Regenerate()
if endIsConnected:
for conn in ductlist[-1].ConnectorManager.Connectors:
if conn.Origin.DistanceTo(ductEndPoint) < 5/304.8:
endrefconn.ConnectTo(conn)
TransactionManager.Instance.TransactionTaskDone()
TransactionManager.Instance.EnsureInTransaction(doc)
for combi in combilist:
ConnectElements(combi[0],combi[1])
TransactionManager.Instance.TransactionTaskDone()
OUT = ductsout, fittingsout
