Hatch areas issue

Civil3D
1

Hi guys, i am working on a script that calculates the total impervious and pervious areas. Areas that intersect are also calculated and reduce accordingly. Everything works well if the areas area created with lines boundaries but if they have arcs, things behave totally different. any ideas? thanks.Areas.dyn (77.5 KB)

Areas_2020-02-12_10-56-02
Areas_2020-02-12_10-56-022006×1395 340 KB
areas-dwg
areas-dwg4247×2362 56.6 KB

2

@csanchez which version of Civil 3D Toolkit are you using?

It is working in my tests

image1476×647 29.9 KB

3

Hi Paolo,
I was running version 1.0.12. i just updated to the new version 1.0.13 and same thing. i added and area with multiple arcs shapes around and gets worse.Capture areas.dwg (486.2 KB) Areas.dyn (83.3 KB)

Capture1
Capture12002×1238 362 KB

4

I don’t know what to tell you… Try explode the boundary and recreate the hatches maybe?

image1715×818 77.7 KB

5

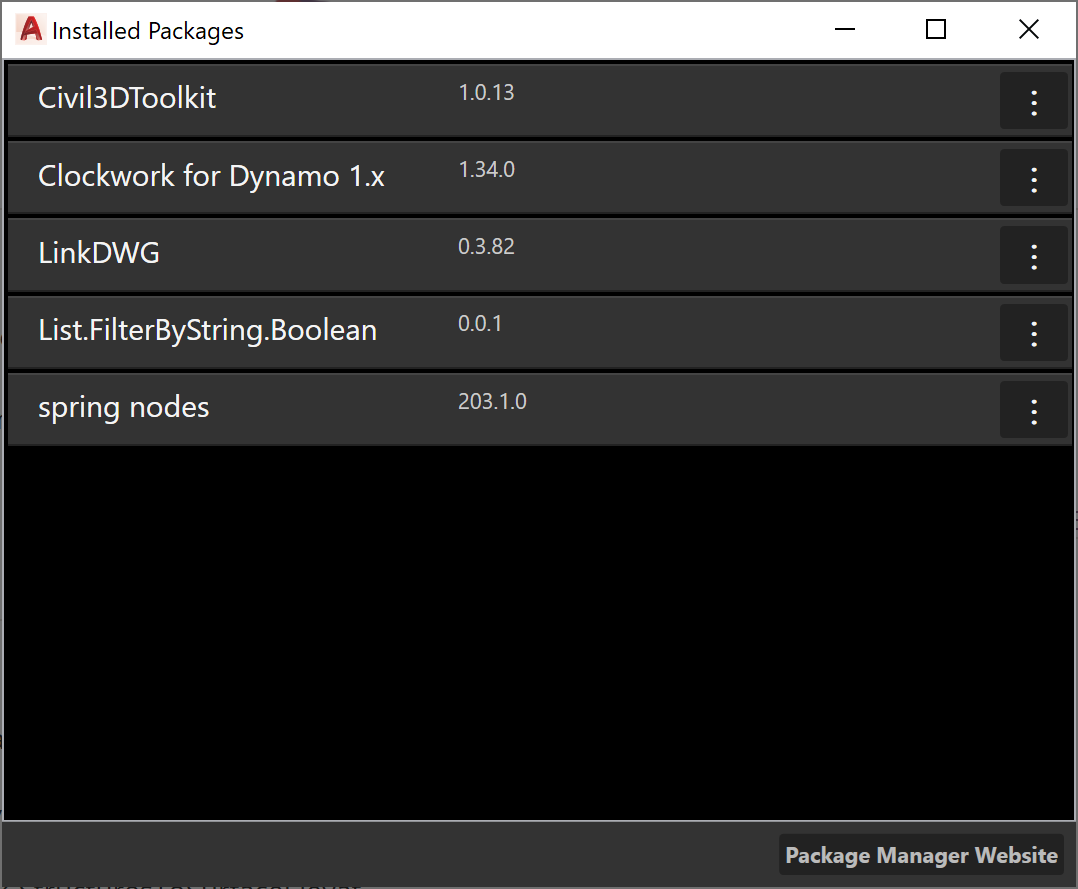

Paolo, i tried in a different computer with the same results. We are running civil 3d 2020.2 update dynamo core 2.4.1.6394, dynamo civil 3d 2.4.1.2161 and the the attached packages installed in dynamo.

Capture
Capture1078×889 26.7 KB

6

Hi @Paolo_Emilio_Serra1, I have been having issues using the Toolkit for hatch geometry as well. Can you please take a look at the attached files? I am using Toolkit v1.1.8.

Hatching.dwg (477.4 KB)
Hatching.dyn (7.6 KB)
