Floor or model in place from dwg

Revit
1

Hi,

I have a floor, and i need to create a negative element, to do this…

image.png589×572 12.5 KB

I have a dwg with all negative drawings that i have to do…


I was thinking in 2 ways…

1º) Convert all dwg lines and create a model-in-place (empty), and after cut the floor.

I already created the lines from dwg, but can’t create a model-in-place…

and another way is…

2º) Create a floor using all lines from dwg… and after JOIN and invert JOIN.

In this case, i need help to create a floor using lines or curves from dwg.


2

Hi,

I suppose you’re trying to do something like that?

1

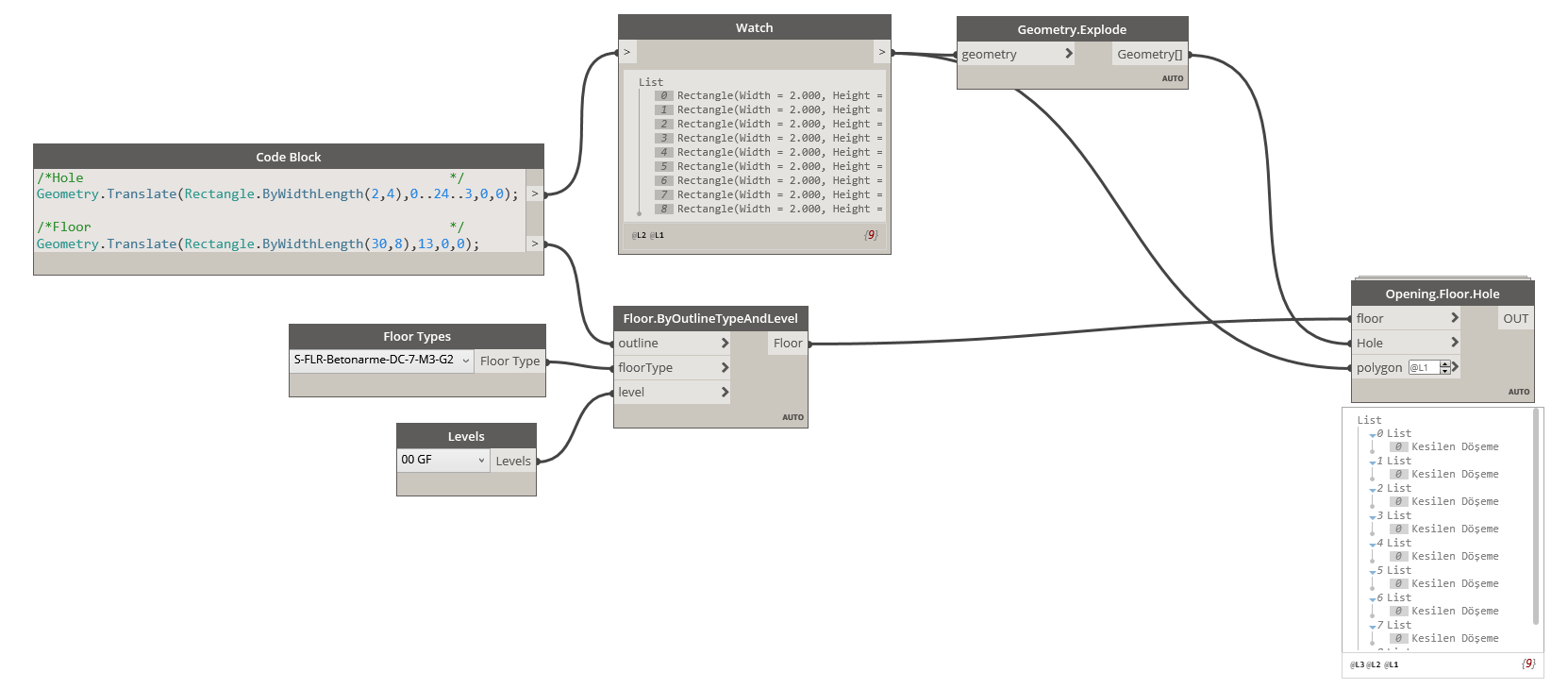

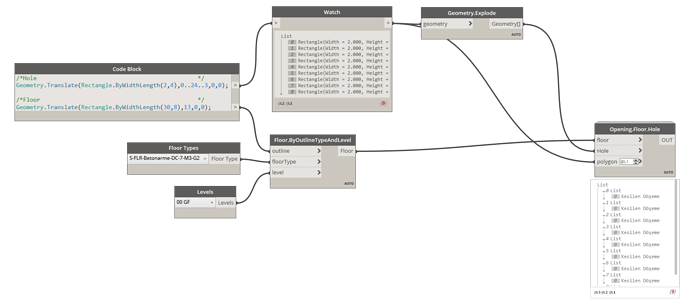

1.png1662×730 62.2 KB

3

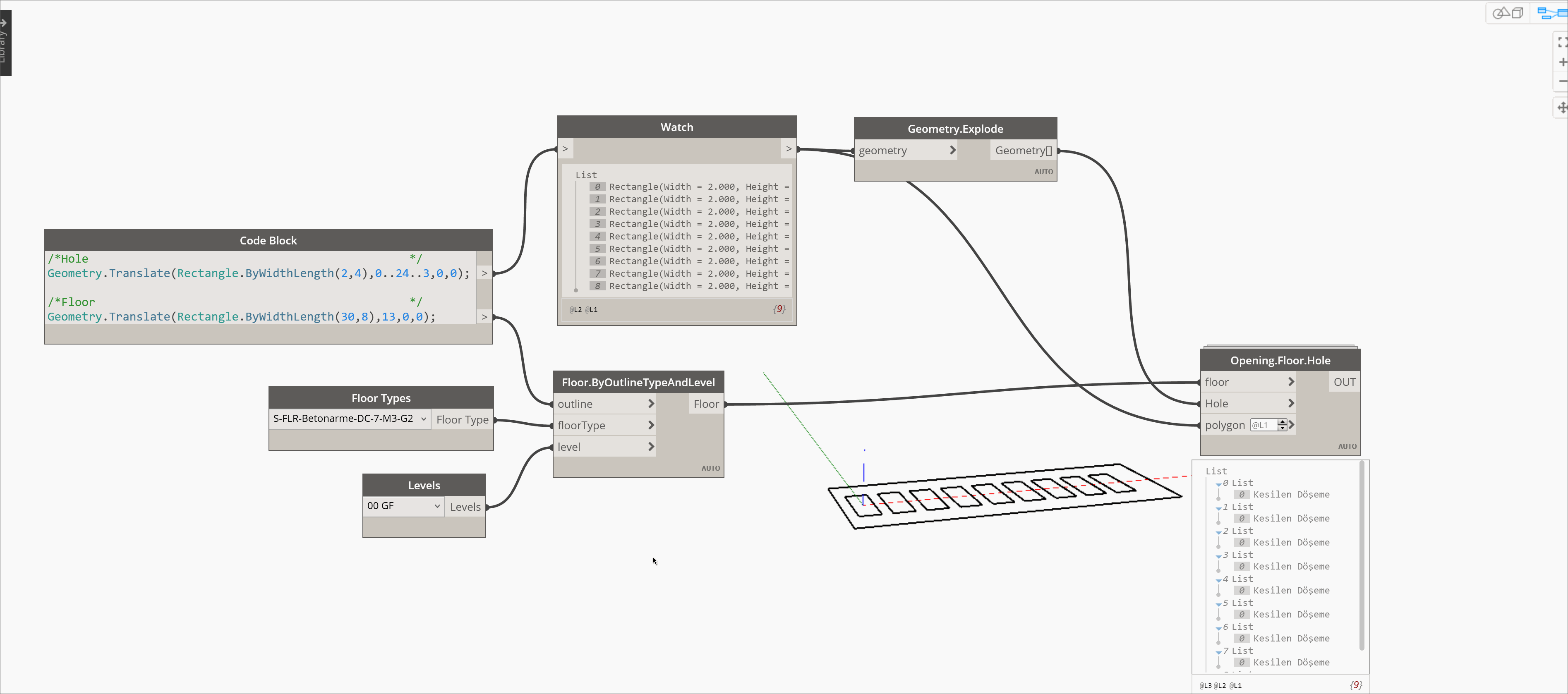

3.gif3790×1678 2.1 MB

import clr
clr.AddReference('RevitAPI')
clr.AddReference("RevitServices")
clr.AddReference("RevitNodes")
import RevitServices
import Revit
import Autodesk
from Autodesk.Revit.DB import *

clr.ImportExtensions(Revit.GeometryConversion)

from RevitServices.Persistence import DocumentManager
from RevitServices.Transactions import TransactionManager

doc = DocumentManager.Instance.CurrentDBDocument

floors = UnwrapElement(IN[0])
holes = UnwrapElement(IN[1])
polys = UnwrapElement(IN[2])
lst = []

TransactionManager.Instance.EnsureInTransaction(doc)

for j, l in zip(polys, floors):
	for k in holes:
		ln = k[0].ToRevitType()
		pt = ln.GetEndPoint(0).ToPoint()

		test = j.ContainmentTest(pt)
		if test == True:
			crvArr = CurveArray()
			for m in k:
				crvArr.Append(m.ToRevitType())

			doc.Create.NewOpening(l, crvArr, True)
			lst.append("Kesilen Döşeme")

TransactionManager.Instance.TransactionTaskDone()

OUT = lst
3

Thanks for the answer.

Look, my problem is that i have no rectangles.

This is my dwg… with 8 lines

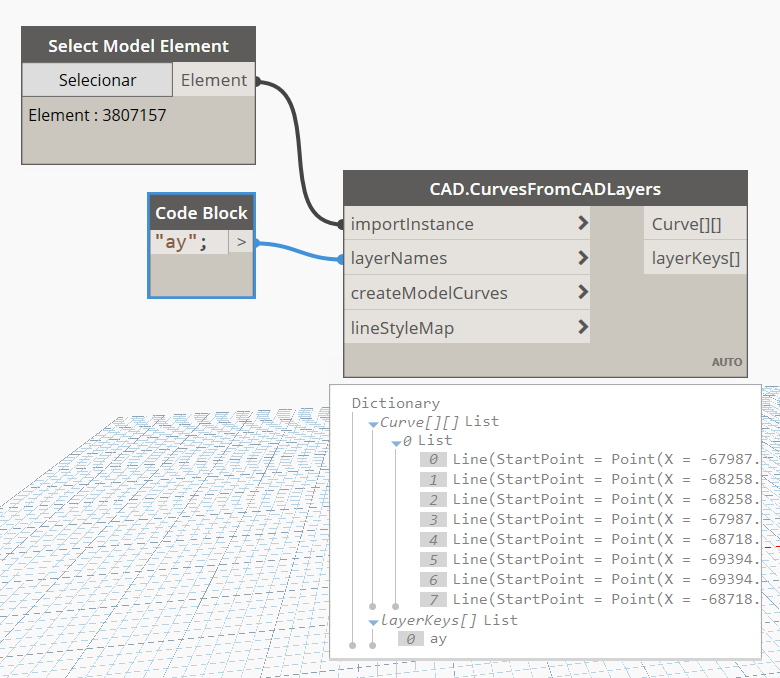

I’m using this nodes to create lines in revit…

image.png780×678 43.9 KB

As you can see, in the final, i have ONE LIST, with all lines…

Actually, i dont need to do holes in the floor, if was possible to create floors according the lines in dwg, it would be good.

4

Hi,

  • "Rectangle " is not necessarily, it is sufficient for any "Polygon " code to run.

You can use it.

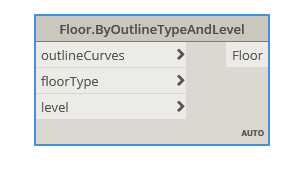

Capture

5

Look into the group curves node in Archilab as well. :wink:
