I’m trying to get some data from Revit schedules to Excel, filtered on a specific part of the name.
For example:
I start with the following;
List
[0] 13.20_BID_FL_tpg_beton_300_C35/45_constr
[1] 27.21_BID_FL_tpg_beton_300_C35/45_constr_vlak
[2] 23.21_BID_FL_kanaalplaat A260_C45/55_constr_vrijdr
[3] 23.21_BID_FL_breedplaat_260_C35/45_constr_vrijdr
I would like to filter them on the word ‘tpg’, so my result would be:
List [0]
[0] 13.20_BID_FL_tpgbeton_300_C35/45_constr
[1] 27.21_BID_FLtpg_beton_300_C35/45_constr_vlak
List [1]
[0] 23.21_BID_FL_kanaalplaat A260_C45/55_constr_vrijdr
[1] 23.21_BID_FL_breedplaat_260_C35/45_constr_vrijdr

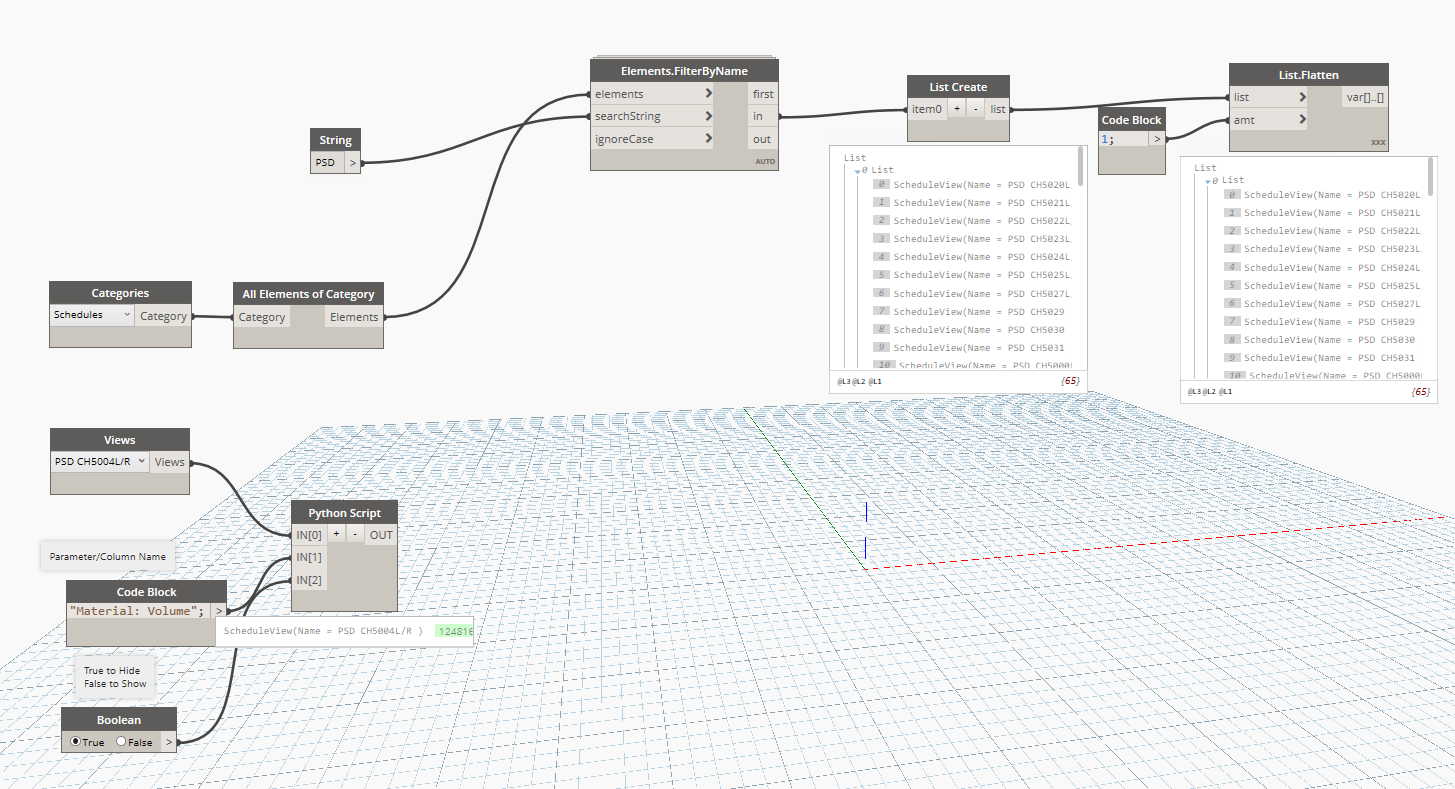

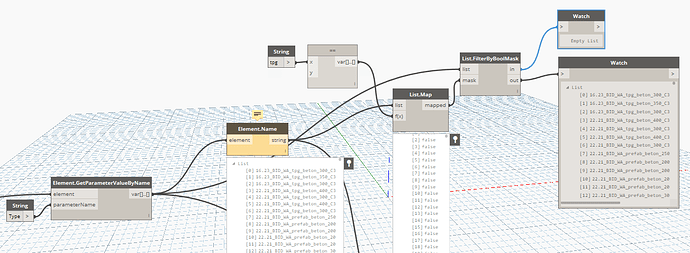

This is what I have so far, as you can see it isn’t working out… I’m sure it is because I used the equal node the wrong way, but I simply don’t know how to dive into this any other way. Can anyone help me out with this? Thanks!
The single entry works, as provided by someone via this forum, however, l cannot work out how to introduce multiple applicable entries into the script.

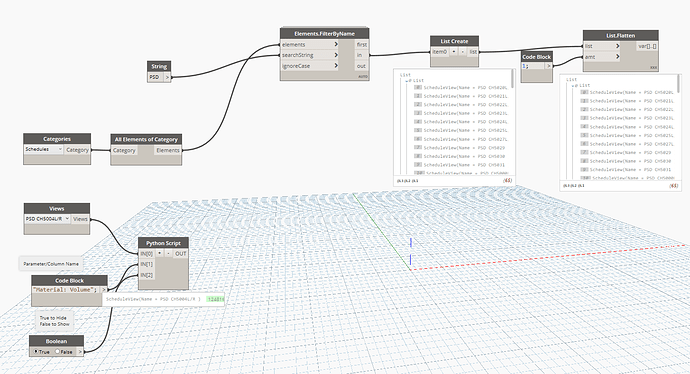

I applied this, which l found on here, but returned evaluator issue:
import clr
clr.AddReference(‘RevitAPI’)
import Autodesk
from Autodesk.Revit.DB import *
clr.AddReference(“RevitNodes”)
import Revit
clr.ImportExtensions(Revit.Elements)
from Revit.Elements import *
clr.ImportExtensions(Revit.GeometryConversion)
from Revit.GeometryConversion import *
clr.ImportExtensions(Revit.GeometryReferences)
from Revit.GeometryReferences import *
import System
from System.Collections.Generic import *
clr.AddReference(“RevitServices”)
import RevitServices
from RevitServices.Persistence import DocumentManager
from RevitServices.Transactions import * #TransactionManager
colName = “Material: Volume”;
S = UnwrapElement(IN[0])
for schedule in S:
[definit = schedule.Definition
countParameters = definit.GetFieldCount()
Parameter names
names = []
for i in range(countParameters):
Parname = definit.GetField(i).ColumnHeading # Parameter Column name
if Parname == colName:
index = i
field = schedule.Definition.GetField(index) # schedule field
TransactionManager.Instance.EnsureInTransaction(doc)
field.IsHidden = IN[1] # 1 = Hide, 0 = Show
TransactionManager.Instance.TransactionTaskDone()
]
