Drawing a Detail Line over specific lines

Revit
1

Hello

As the title suggests , i have a cad file with some lines that are drawn on a layer, i want revit to draw Detail lines over them, is that possible??

thanks in advance.

2

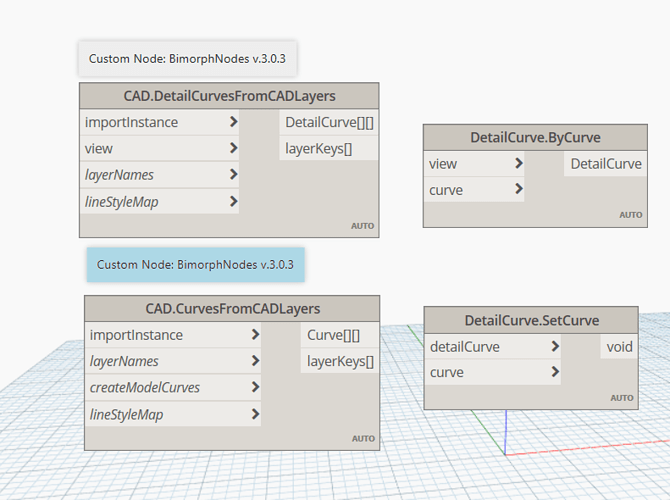

Hello @NERDASORUS …yes it is…try to play around with these nodes here

test
test791Ă—590 334 KB

2 Likes
3

thank you for your answer

but when i “select model element” and link it to “importinstance” i get a warning that says “Categories Cannot be hidden”!

4

HI
Difficult to say, as i dont know whats goin on here…share your files and i will take a look :wink:

1 Like
5

turned out to be a defect in the node, and BIMorph are working on it, they provided me with a quick fix thought, just put the view template to “none” and it will work fine!

thanks anyways :smiley:

6

Hey guys any updates on this one trying to trace detail lines off linked cads for the transition to revit in the office. and would love some guidence cheers
