Draw Section ( Based on Section points )

[brraq-Wafi]

Draw Section ( Based on Section points )

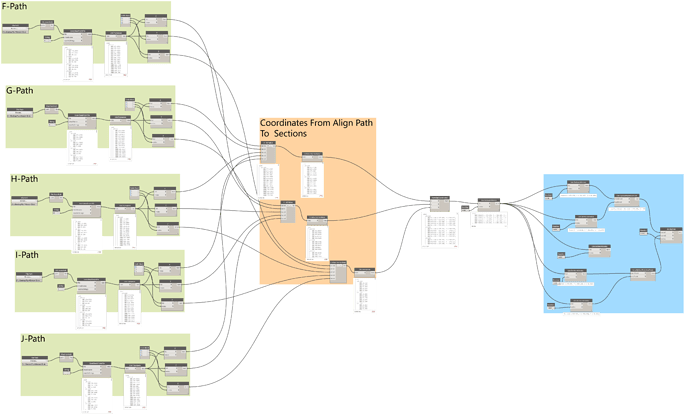

1-I imported Alignment Points From Excel To Dynamo
2-I Converted This Points From Alignment Path To Section Points
3-I Drawed One Section ….

Now… How To Repeat This Function ( Draw Section) For All Sections by easy and quick method

---

---

https://www.mediafire.com/?syickka5vlclkul

---

https://www.mediafire.com/?10cddagiayff6ds

---

https://www.mediafire.com/?09cf251259ngy7p

[jacob.small]

Transpose the results and use the list.getitematindex node with lacing at longest instead of shortest.

[brraq-Wafi]

@jacob.small

Transpose the results and use the list.getitematindex node with lacing at longest instead of shortest.

Thank you very much
it’s Sloved by Transpose The results Only

[DynamoCanDo]

Hi there,
I’m going to open this discussion up again and create a new topic.
I follow the script above however I would like to know what section node the above data set is used for? I have been through the create section nodes by bounding box and by min/mas cs. I will open another topic and reference this thread.
I would appreciate further explanation.
Many thanks

The new topic is here

Draw section based on section points - Section nodes for data set given in referenced example

Hi I’m referencing a previous topic because I would like to know more information. The topic below was solved therefore closed. https://forum.dynamobim.com/t/draw-section-based-on-section-points/12880 I would like to know the section nodes used in dynamo for the data set used in the example. I have experimented with section by bounding box and section by cs min/max. I would be grateful for any further input. Many thanks.
