Dimension bySurface

[TurtleWolfe]

I’m selecting a surface and just want to draw a dimension from one side of it to the other, all the other dimensions I’ve done had named references, is there a way to get a reference from the lines directly?

DimensionBySurface 0.00 aaA.dyn (44.3 KB)

[Marcel_Rijsmus]

The GeniusLoci Package has all the element references to do that, i think

[TurtleWolfe]

Does it, because I haven’t found anything that works for me yet?

[Marcel_Rijsmus]

You can even use Points
@Alban_de_Chasteigner might be able to help you out

[TurtleWolfe]

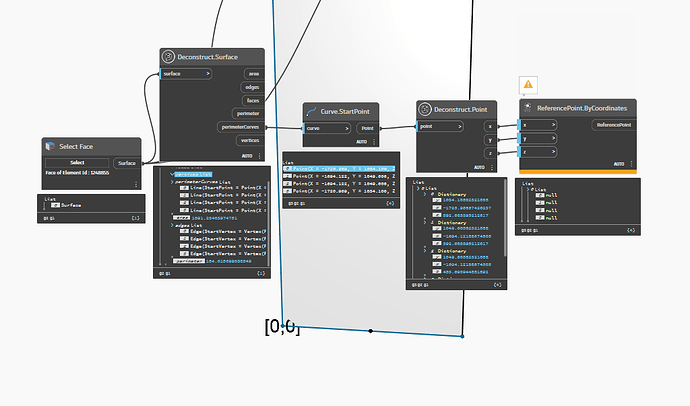

this branch started to look promising until it said it can only create reference in a family document
