Hi All, Is is possible to create wall finishes based on Room Names and adjustable finishes height. Thanks in Advance,

Hi Marcel, I am able to getfinishes room boundries. How can i add wall. Can you show me an example. Thanks,

Hi, Once you have extracted the boomboundaries you have a set of lines, they are called curves in Dynamo. Feed them in the node wall by curve and level and it will will create the walls. The roomcollectornode will provide you the level. Marcel

Hi Marcel, Thanks for replying, I tried i am not getting proper walls its not joining and also i have issue with face also its taking from center.Below are the screenshots. [Untitled1]

Hi you can see this post http://dynamobim.com/forums/topic/wall-bycurveandheight-node-request/ Andreas answer works pretty good.

Thanks Johnes, I tried but Polycurve.offset getting null values.If Possible Can you share with me your dyn files. [Untitled3]

Thanks Viktor, What’s the python script your using? I checked your blog but its not fully described.

Hello Jocelyn. Viktor has provided a really nice work-flow. There seems to be a problem with the “PolyCurve.Offset” node. The node converts the PC into a curve and the only way to extract the individual curves seems to be with the “Geometry.Explode” node. We should always make sure that we offset …

Thanks Dimitar, It works! But there is a problem with wall with finish without using dynamo finish layer comes below wrap. If i use Dynamo it comes above. Is there any solution for this. Below is the Screenshot. [Untitled]

Hi. For the problem with the doors and windows at the end of my definition I’m using python again to join the walls: [2]

Create Wall Finishes With Dynamo

Packages

viktor_kuzev September 14, 2015, 3:23pm 9

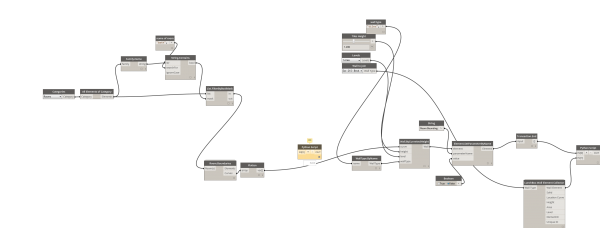

my solution:

Capture

http://revitexperiments.blogspot.bg/2015/08/automatic-finishing-walls.html

Wall Finishes

Wall on the right place
