Create Pipe or duct from dwg

I would like to create pipe or duct from DWG link (line or polyline).

Do you have an idea ?

Hi @c.barribaud

Try this Create Duct From CAD.dyn (7.6 KB)
DYN script. Below is the process in action:

6 Likes

Hi,

Trying you DYN script on REVIT 2016 with dynamo 1.2, I have somme errors:

Polycurve.Curves :

Warning: No function called Curves on a
  Autodesk.DesignScript.Geometry.Line that takes __array could be
  found




Curve.StartPoint :

Warning: Internal error, please report: Dereferencing a non-pointer.



Curve.EndPoint :

Warning: Internal error, please report: Dereferencing a non-pointer.



Create Duct :

Warning: IronPythonEvaluator.EvaluateIronPythonScript operation
failed.

Traceback (most recent call last):

  File "<string>", line 36, in <module>

TypeError: NoneType is not iterable

On which REVIT and dynamo version does it work ?

Do you have an idea about my errors ?

Hi Kulkul,
I get the following error. I am newbie sorry for silly question but if there is any package I need to download please let me know

Current Document Custom Note: Error: Custom node definition is not loaded!

Another question can I use conduits instead of ducts?

Thank you so much @Kulkul for sharing the good work. I’ve be struggling to design the graph by myself. Hope I’ll now complete my work by using your example. Many thanks, stay blessed : - )

If it is done according to different sizes, that’s fine

Hai Sir… I am facing one issue on this script… (CURRENT DOCUMENT-Error:Custom node definition is not loaded)

Please help me to sort out this issues sir…

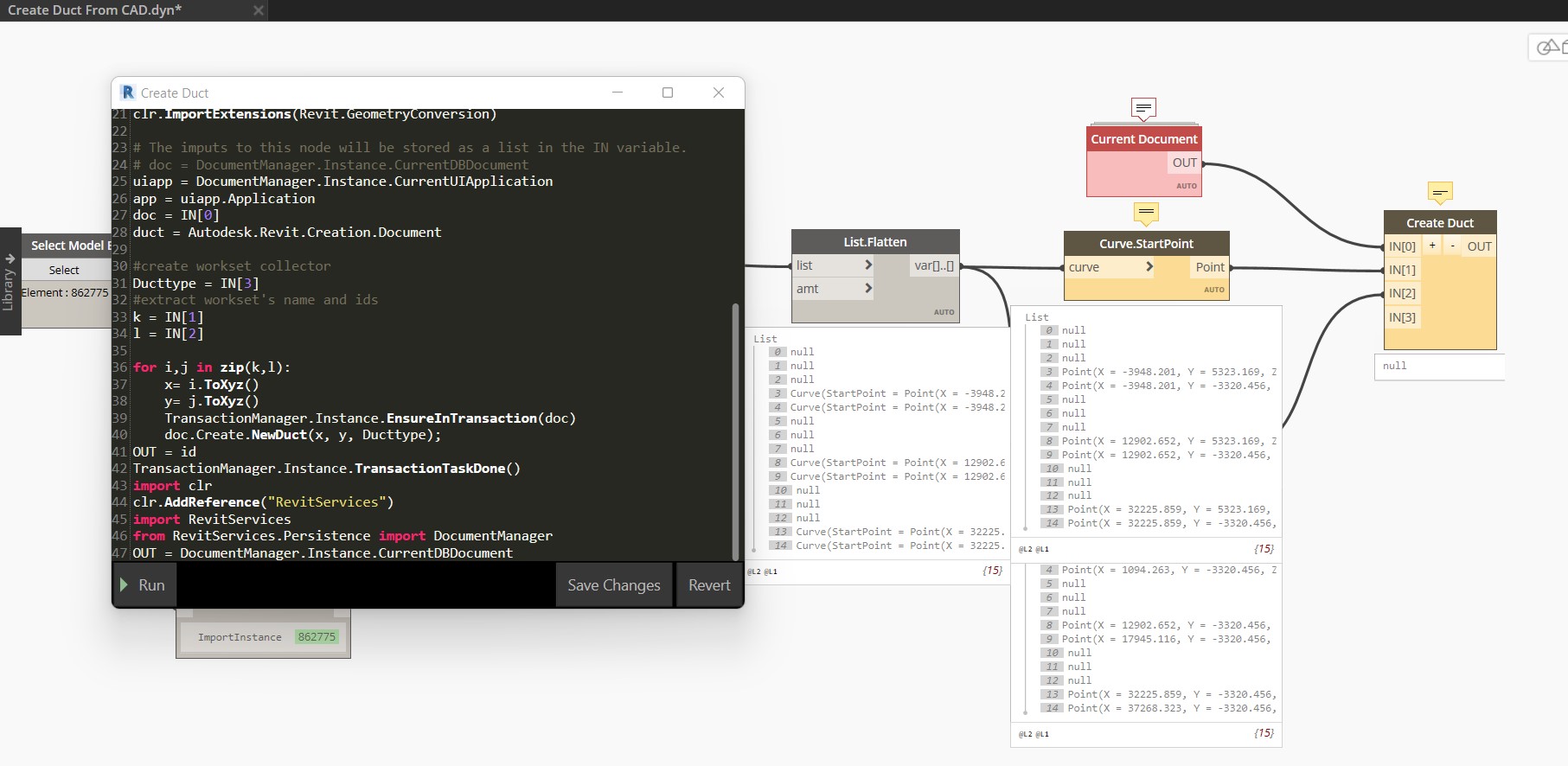

@Mihavel Add below lines in python and you should be fine:

import clr
clr.AddReference("RevitServices")
import RevitServices
from RevitServices.Persistence import DocumentManager
OUT = DocumentManager.Instance.CurrentDBDocument
1 Like

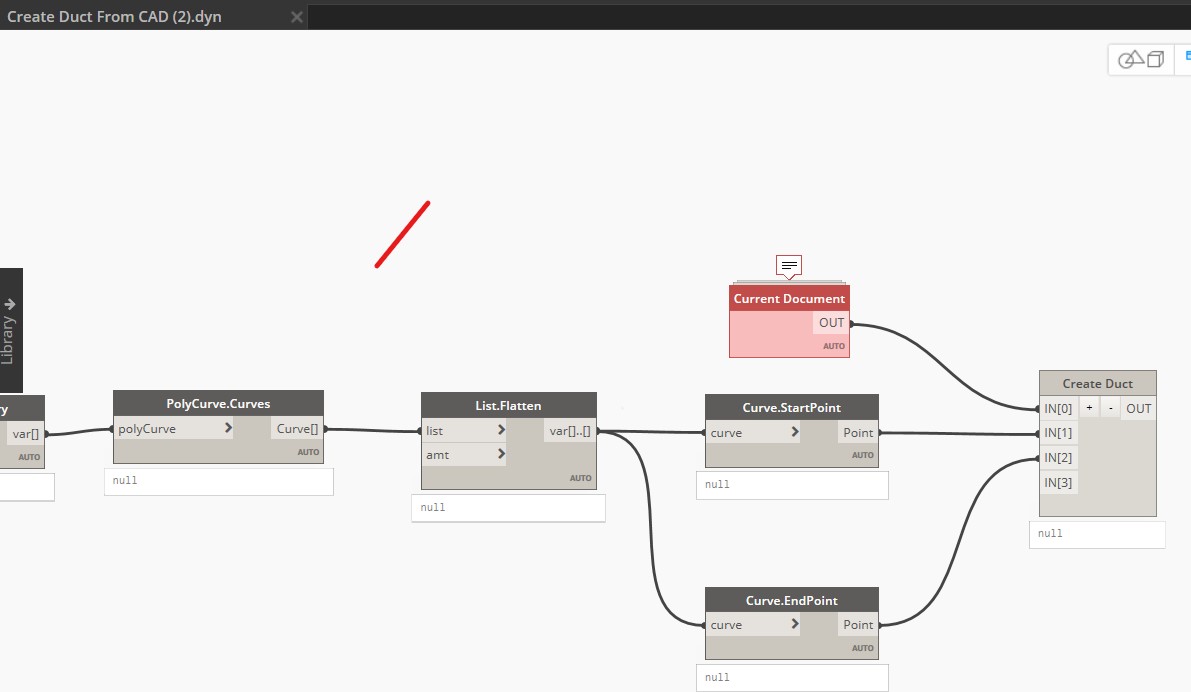

@Kulkul sir… I added your python script… Still it is not done sir…Again some errors… Please check the attached screenshot…

Python code should be replaced with missing Current Document node. You shouldn’t add in Create Duct.

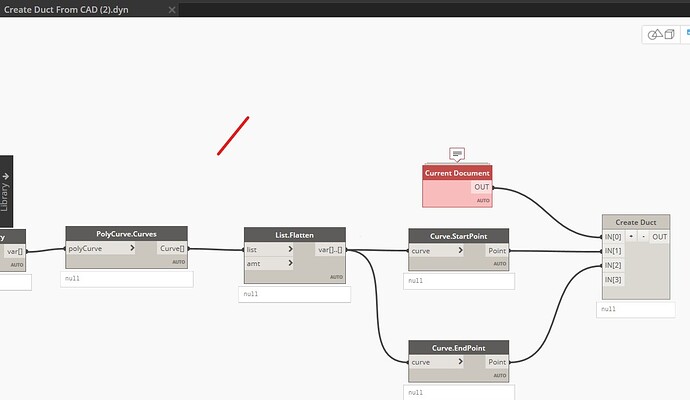

Sir I have added a new python script as per your advice… But Still errors are coming… Please check the attached screenshot…

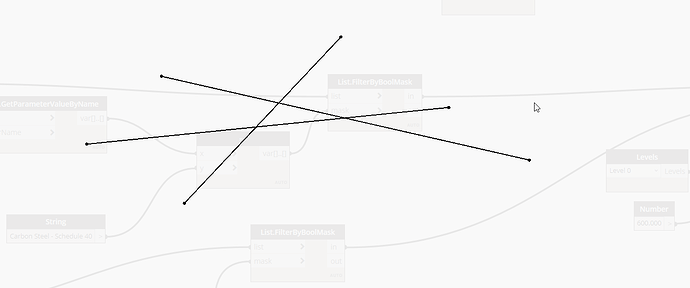

Hi all, I am trying to covert CAD line to Revit pipe by using Dynamo. I am very beginner level in dynamo. Anyone can advise or correct me where I am wrong as per photo attached.

This is the result after I click RUN.

Thanks in advance
