Create Multiple Alignments From Polylines

Civil3D
1

For @Ernest.Villanueva - see original post here:

Here’s an example of creating multiple alignments from polylines. This will require the Civil 3D Toolkit package.

CreateAlignments.dwg (401.6 KB)
CreateAlignments.dyn (46.3 KB)
MultipleCorridors.xlsx (8.8 KB)

CreateAlignments
CreateAlignments1920×1080 3.02 MB

8 Likes
2

Again, great use of using a dictionary for handling excel data, I keep forgetting to utilize this. Once the alignments are created I could also see someone wanting to automate the stationing direction from North to South or West to East so see my attached addition :smiley:
CreateAlignmentsV2(STA Direction).dyn (106.9 KB)
MultipleCorridors.xlsx (8.8 KB)
CreateAlignments.dwg (401.6 KB)

CreateAlignmentsV2(STA Direction)_2021-01-05_09-32-50
CreateAlignmentsV2(STA Direction)_2021-01-05_09-32-507598×2054 688 KB

5 Likes
3

I have a doubt …how the direction of alignment is selected in CreateAlignmentfromPolyline Node ?

4

It takes the direction of the polyline.

1 Like
5

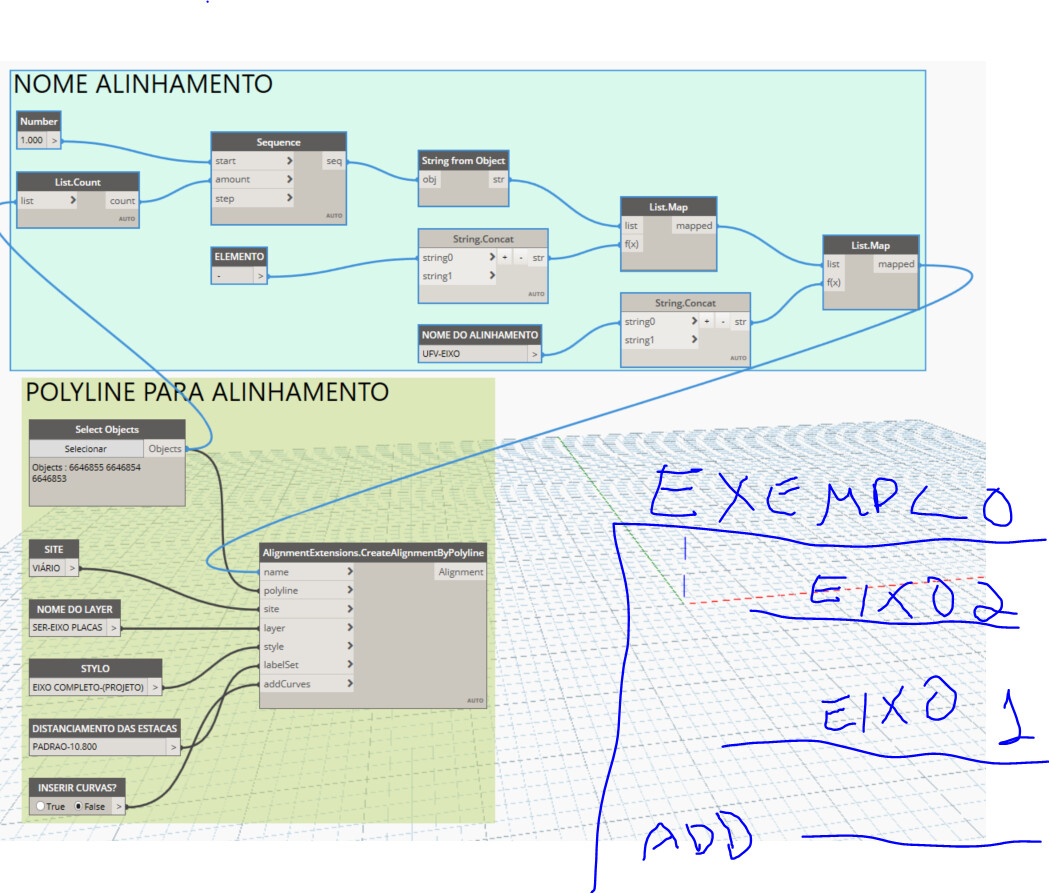

Olá, gostaria de uma ajuda nessa rotina que estou criando…

Primeiro nessa rotina ele criar a sequencia do alinhamento sul - norte como estar rabiscado na imagem eu gostaria q ficasse de cima para baixo a sequencia dos alinhamento.

Segundo, quando vou adicionar uma outra polyline ele não criar, por causa que eixo 01 já foi criado. gostaria de uma ajuda para essa rotina rodar

Capturar.PNG1049×893 245 KB

6

This is so helpful! Thank you for sharing. Is there a way to set the alignment type (for instance: Centerline, Curb Return, Rail, etc.)?

7

Nope, sorry. That property is read-only in the API and can’t be changed. It’s been on the wish list for several years. You can vote for it on the Idea Board if you want:

1 Like
8

Okay, thanks for letting me know!

9

I hope you will understand that my english is not very good…
I want to pass the road route by offsetting the middle of the road by selecting line or polyline…
I tried a little bit but couldn’t reach the result completely…
EXAMPLE ROAD-2.dwg (2.5 MB)
POLYLİNE GÜZERGAH OLUŞTURMA+BİRLEŞTİRME-2.dyn (121.9 KB)

10

11

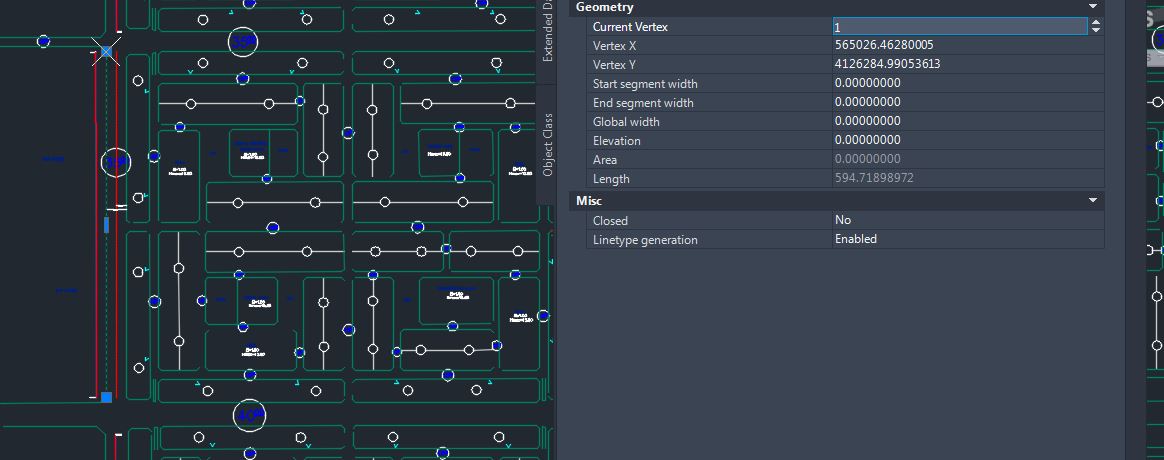

reverse direction to polyline

www
www1164×460 62.6 KB

12

I want to combine lines or polylines and make a Alignment

13

If you can review the dyn file I sent…

14

WWWWW1

POLYLİNE GÜZERGAH OLUŞTURMA+BİRLEŞTİRME-202.dyn (39.4 KB)

15

thanks hosneyalaa
I want to combine polylines and then do alignment

16

Selamun Aleykum akhi hosneyalaa
want to combine polylines, but I couldn’t do it somehow…

17

Selamun Aleykum @abdullahcicek

ereqw

18

choukran akhi @hosneyalaa

19

Is it possible to change the direction (reverse) of line and polyline like in this lisp, in dynamo?

20

reverse Multi obje .lsp.txt (6.4 KB)
