Converting Dynamo output to curves

[Khaled_Adam]

Hi, I’m new to Dynamo, I have an issue looks simple but i couldn’t sort it out. I have a pattern of circles created with Dynamo. I’m satisfied now with the output but i don’t know how to convert it into detail lines or any sketch to be used in my Revit project. I can not edit the blue pattern created or even select it. Any suggestions

.

[Kulkul]

You can split circles and create detail lines. You can’t directly use circles. Similar topic is discussed here:

A problem with creating floor element by circular curve with dynamo

You can’t use directly circle to create wall even in Revit when you create a wall in Revit using a circle, it actually creates 2 half-circles. If you split your circle from the midpoint, it works: [WallCircular]

[Khaled_Adam]

Actually the main purpose is to use the pattern in an extruded model in place panel.

[Khaled_Adam]

and how to split the circle?

[Ewan_Opie]

Just one way…

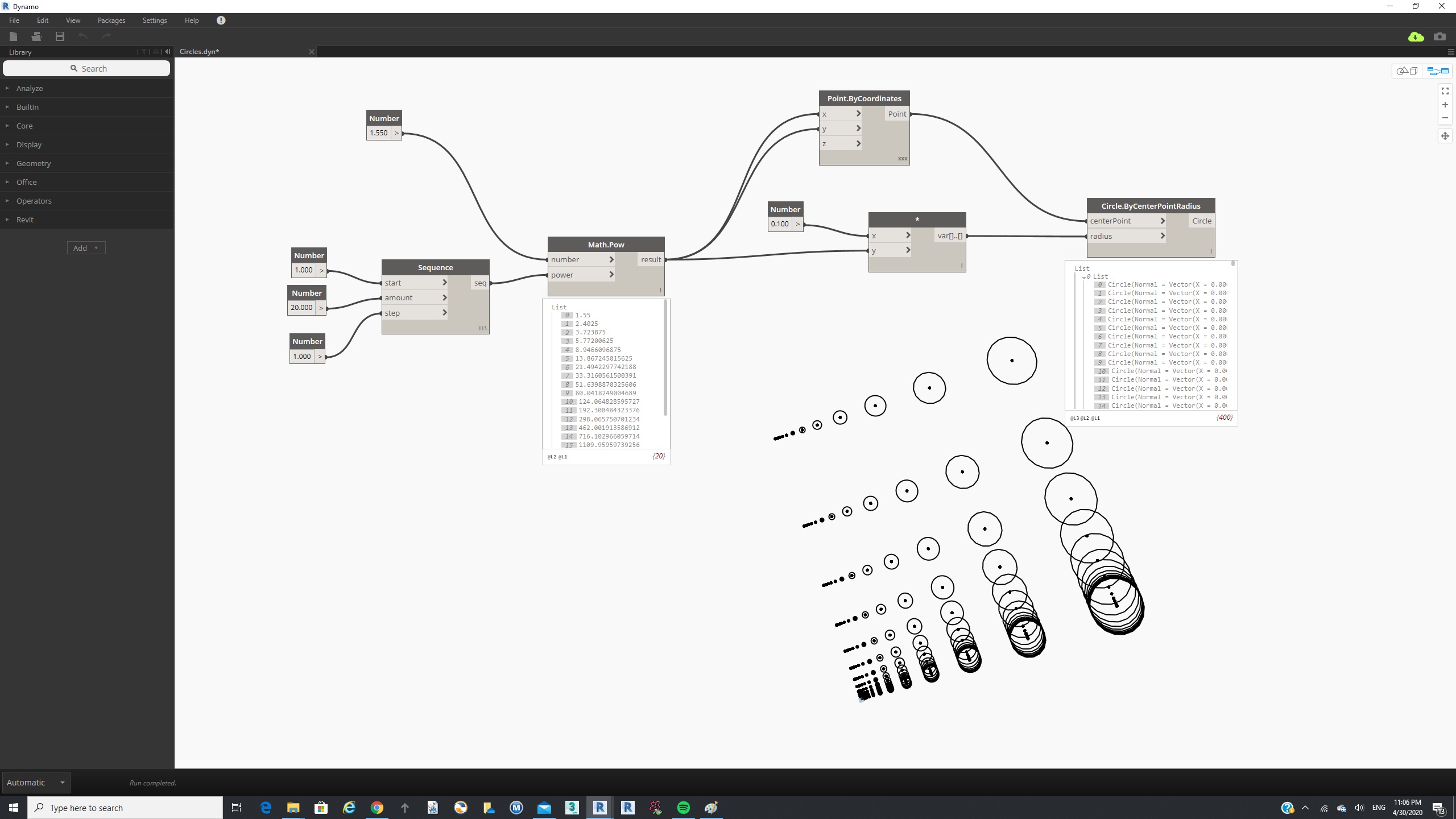

You can use Points generated at Parameters to create the Curves.

[Khaled_Adam]

Hi, this is exactly what i wanted. By curve did it the right way.
