Can't offset circle, arcs, splines

geometry
dynamo
springs

#1

I’m trying to offset some geometries.

When I try offsetting a shape with straight lines, it works fine.
When I try to offset a shape with arcs or splines, I get an error saying it could not offset the polycurve.

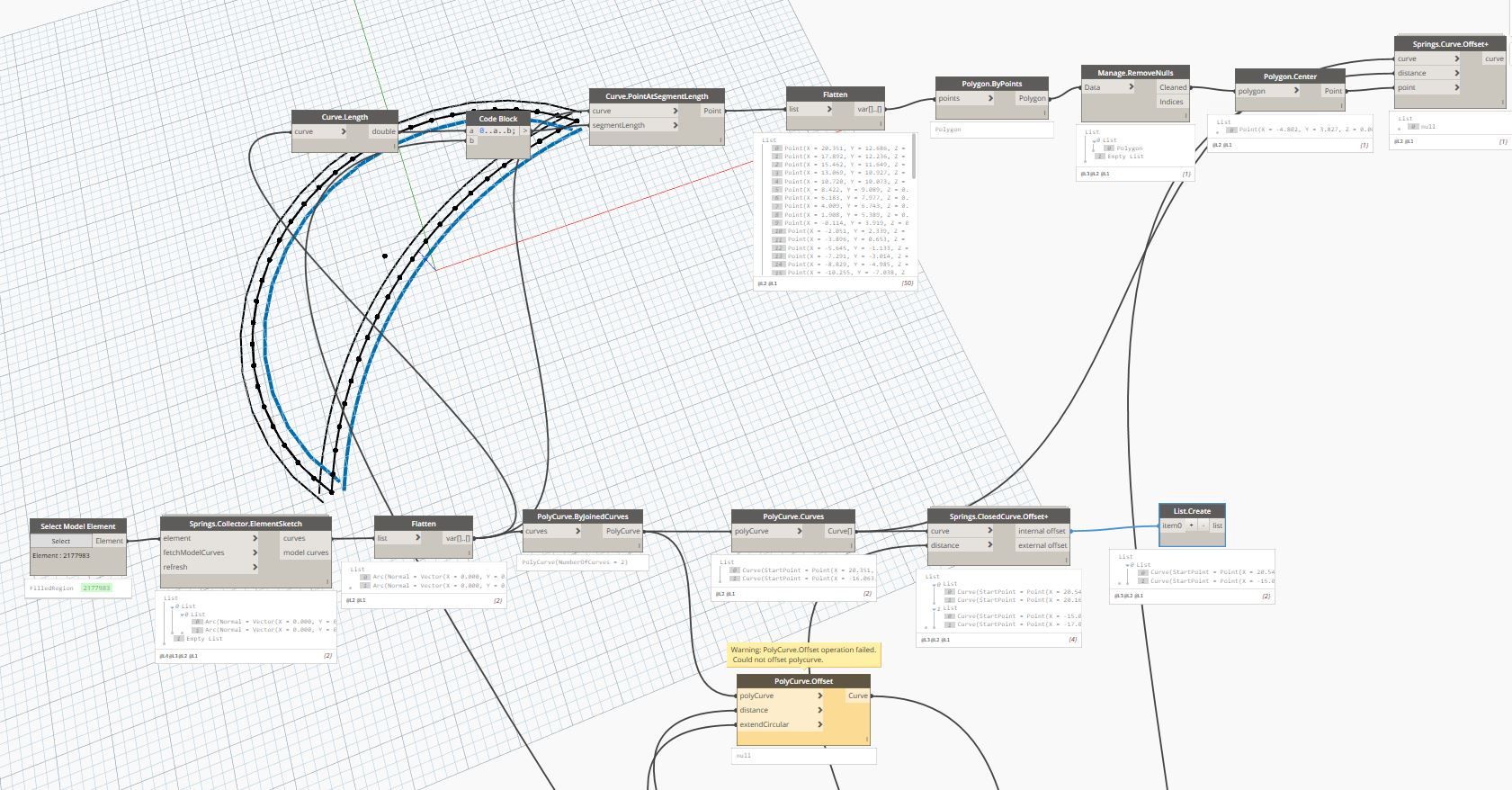

I’ve tried converting it to curves and offsetting it but it goes in inconsistent directions. I tried using the Springs.Curve.Offset+ but it returns as null. I tried using the Springs.ClosedCurve.Offset+ but it returns a mix of curves going to both directions (not getting the internal & external offset right). I’ve tried joining them or doing them separately. I’ve tried some other stuff I can’t remember right now.

I can’t really figure out what I’m doing wrong.


#2

Can you post a source file (purge all unnecessary elements to run the graph) and this dyn so those who want to help are working off a common dataset? Otherwise it is very hard to see what the issue is as it’s tied to how the Revit geometry was created.


#3

Have you tried converting the polycurves into nurbs curves? If you are offsetting a polycurve that is made up of straight lengths around a geometric curve, then offsetting them would either create gaps or overlaps, which I suspect Dynamo doesn’t like hence the error. Shouldn’t have so much trouble with a nurbs curve of up’d degree accuracy :slightly_smiling_face:
