Automatic join geometry in Revit

[Johnes_Hou]

any packages or script in dynamo that can use to join element like this video on youtube?

https://www.youtube.com/watch?v=jL0P7pfvYnc



I found the API call <span style=“color: #000000;”>Document</span><span class=“languageSpecificText” style=“color: #000000;”>.</span><span style=“color: #000000;”>AutoJoinElements Method that maybe did the job</span>

but i don’t know how to programing the api call in Dynamo.

any help?

http://revitapisearch.com/html/a3c929fb-6164-c7bb-d140-4178fb07fd4e.htm

[Ben_Osborne]

Check out this thread…

http://dynamobim.com/forums/topic/disallow-join-of-the-wall/

In Dynamo, you will need to first get the elements that you want to join and sort/order them in whatever manner you desire to feed into the joining script. Then you will need to write a python script to do the join/disjoin that you want. Plenty of examples all over this forum of how to write a python script, or go look at http://archi-lab.net/

Or you could just learn Russian and copy what was done on the youtube video you referenced…

[Kulkul]

Hi Ben,

Thread shows how to disallow join. How about joining the geometry is there any thread to check out?

[Ben_Osborne]

Correct, that thread shows how to disallow Joins, but the procedure is pretty much the same for joining. you feed the elements you want to join/unjoin/switch join order into python, then apply the correct line(s) of code.

Here’s the important pieces of code depending on what you want to do…

Autodesk.Revit.DB.JoinGeometryUtils.JoinGeometry(doc, elementA, elementB)

Autodesk.Revit.DB.JoinGeometryUtils.UnjoinGeometry(doc, elementA, elementB)

Autodesk.Revit.DB.JoinGeometryUtils.IsCuttingElementInJoin(doc, elementA, elementB)

Autodesk.Revit.DB.JoinGeometryUtils.SwitchJoinOrder(doc, elementA, elementB)

Autodesk.Revit.DB.JoinGeometryUtils.AreElementJoined(doc, elementA, elementB)

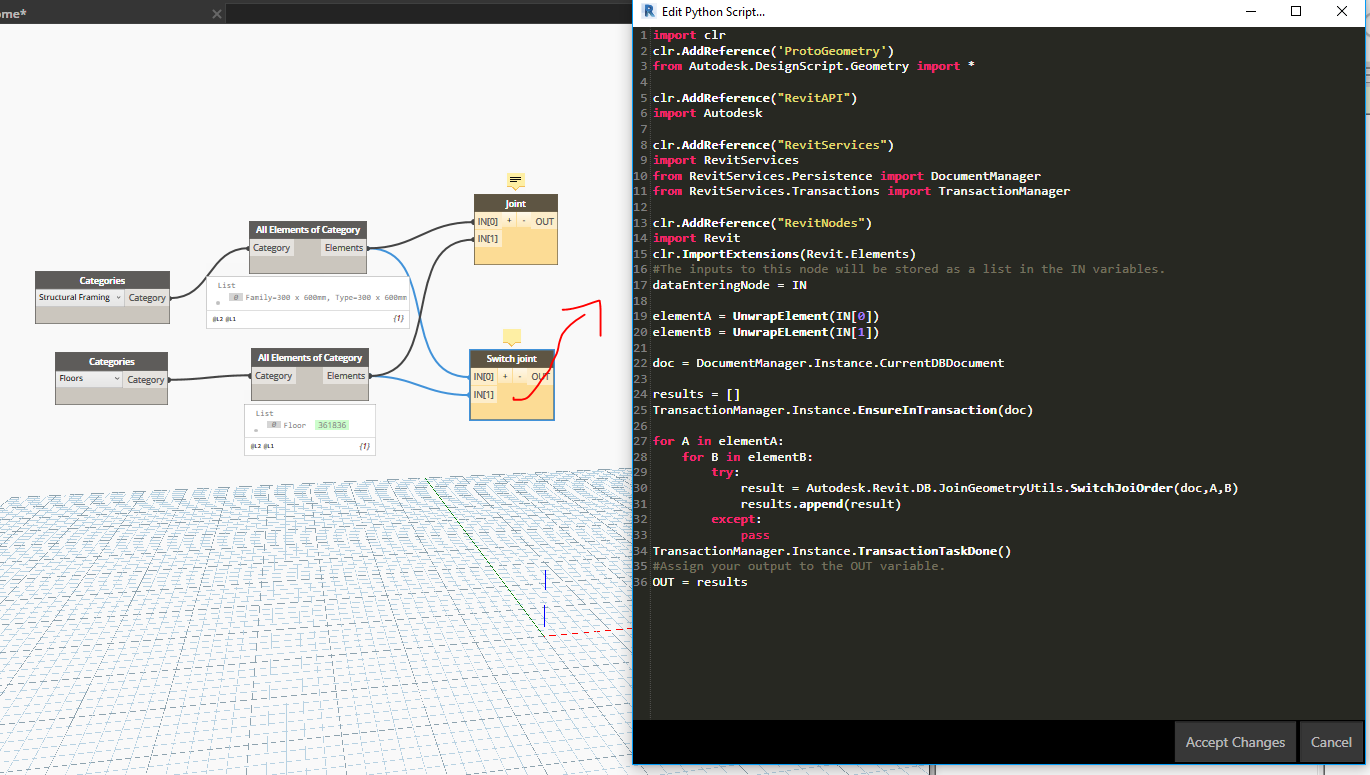

it will look something like this:

[111189]

Hello! Dear BEN OSBORNE! Your script work , is wonderful ! Can you change your script to make it work for lists??

[Park_Hae_yong]

Error Same to

[Kulkul]

Hi Park & Тимур,

To join elements you have to know whether the elements your joining is already joined. To know how follow screenshot below. Good Luck!

[Hoc_Em]

Do you guys have any Ideas about Cut Geometry in dynamo. I created a void family from Generic Model template, then loaded in project and use Cut Geometry. However, due to the numerous cuts that I have to do. Do you have any solution of using dynamo for this issue?

THANK YOU

[Kulkul]

Hi Hoc,

No need to post same question twice. It is been posted here also http://dynamobim.org/forums/topic/join-geometry/

Its better if you can post screenshots of your graph. So that we can clearly understand your issue and provide you solution.

Thanks,

[jamess166]

Hello,
I’m trying to make an auto join order between floors and beams, but the scrip does not work for me, any recommendations. Thank you
