3D Data Points to Cut Spline, Model Line

Geometry
,
1

Hello, I am new to Dynamo and I have been given a set of datapoints in a text file. There are roughfly 8500 datapoints describing a 2.6mile path. The task is to create framing along the 3D spline. Initially, I would be able to split the spline at a desired length, but once imported in Revit I would like to have the ability to use model lines for future adjustments.

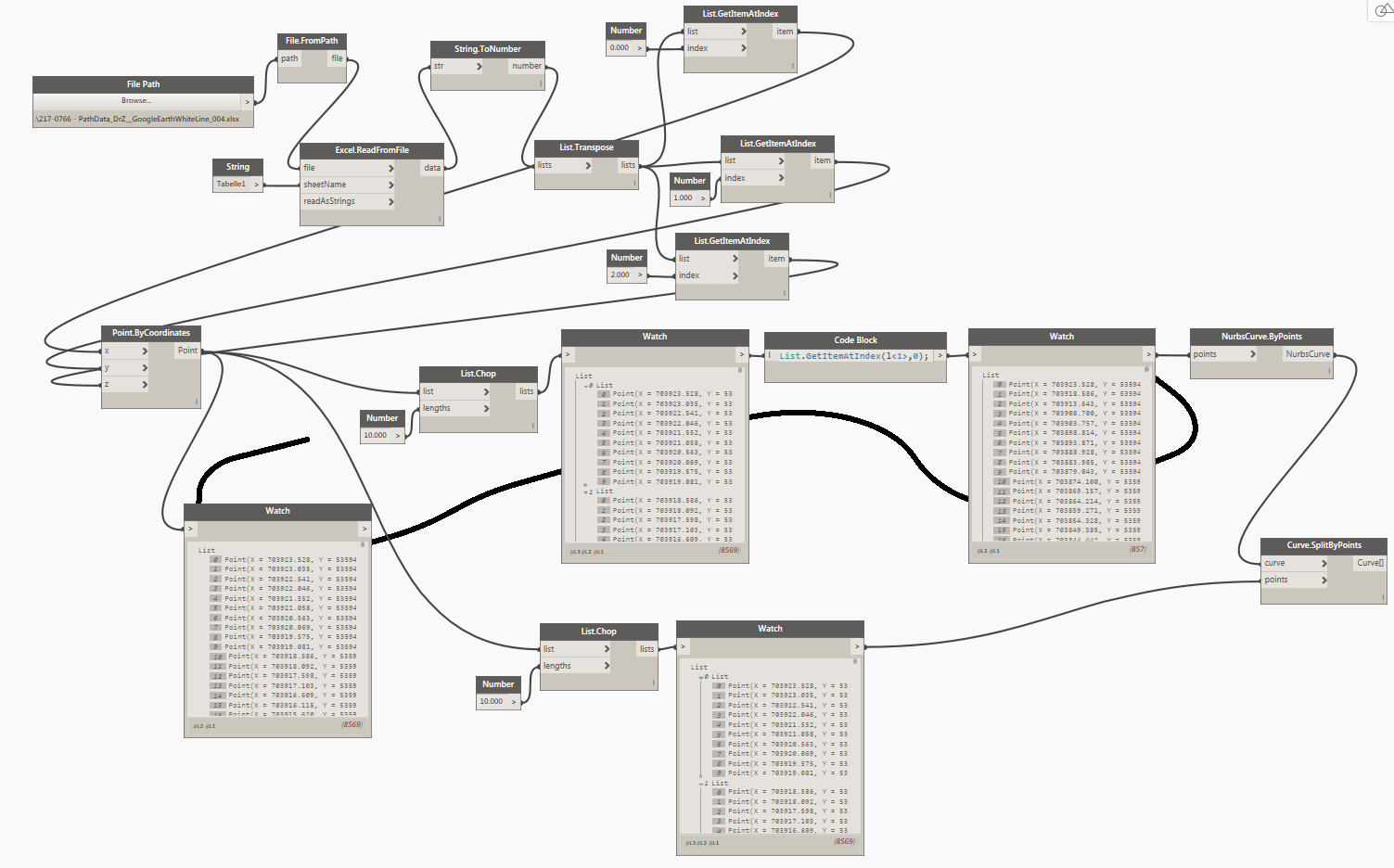

At this point I have tryed creating a polyline and a spline with this data. Below is the latest version of my attempt. Unfortunatly when loading this script into Revit, I am unable to select the ‘line’.

As a second point, is there a way to move these points such that one end of the ‘line’ will be at 0,0,0?

grafik
grafik.png1503×936 148 KB

1 Like
2

A Dynamo Curve is not the same as a Revit Curve. Once you have your curves in Dynamo you’ll want to use ModelCurve.ByCurve to create the curves in Revit.

3

As for your second point, you just need to get the point you want at 0,0,0 and translate the whole group of points by its inverse coordinates.

4

Thanks for the reply. I will do just that.

5

Thanks for the advice. When using the model curve, the line is unfortunately no longer a smooth curve. Any tips on how to correct this error?

6

You’ll have to check the forums. I’ve seen posts about this sort of thing but I’m not too familiar with it.
