I provide three options for extracting solid volumes from corridors, the main objective being paving volumes.

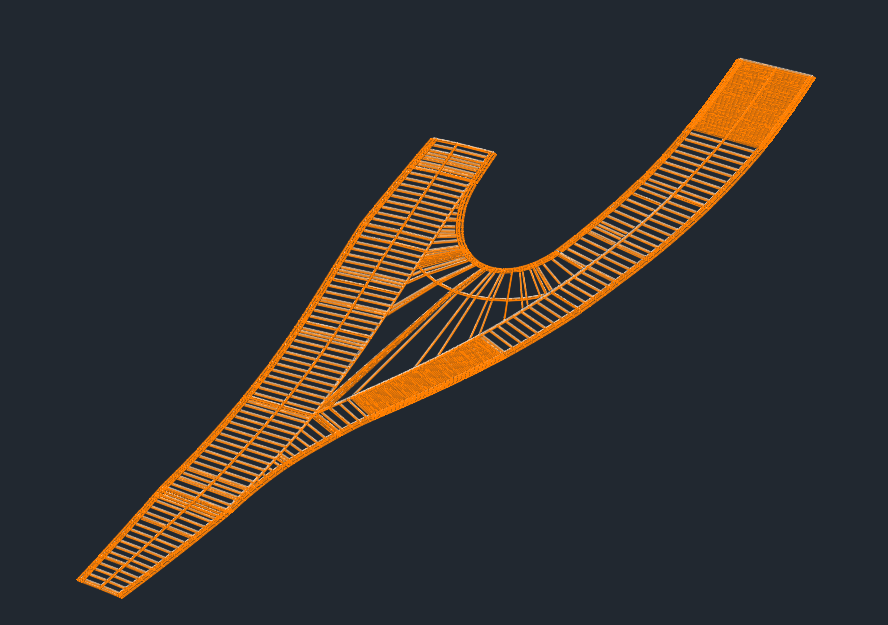

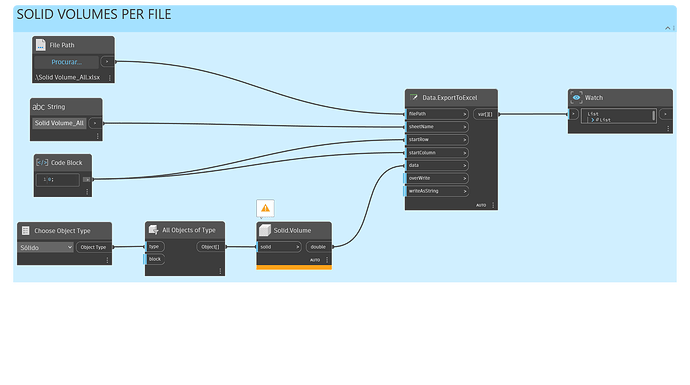

V1 reads all the solids in the file and generates the Excel spreadsheet.
V2 reads the solids by layer and generates the Excel spreadsheet.

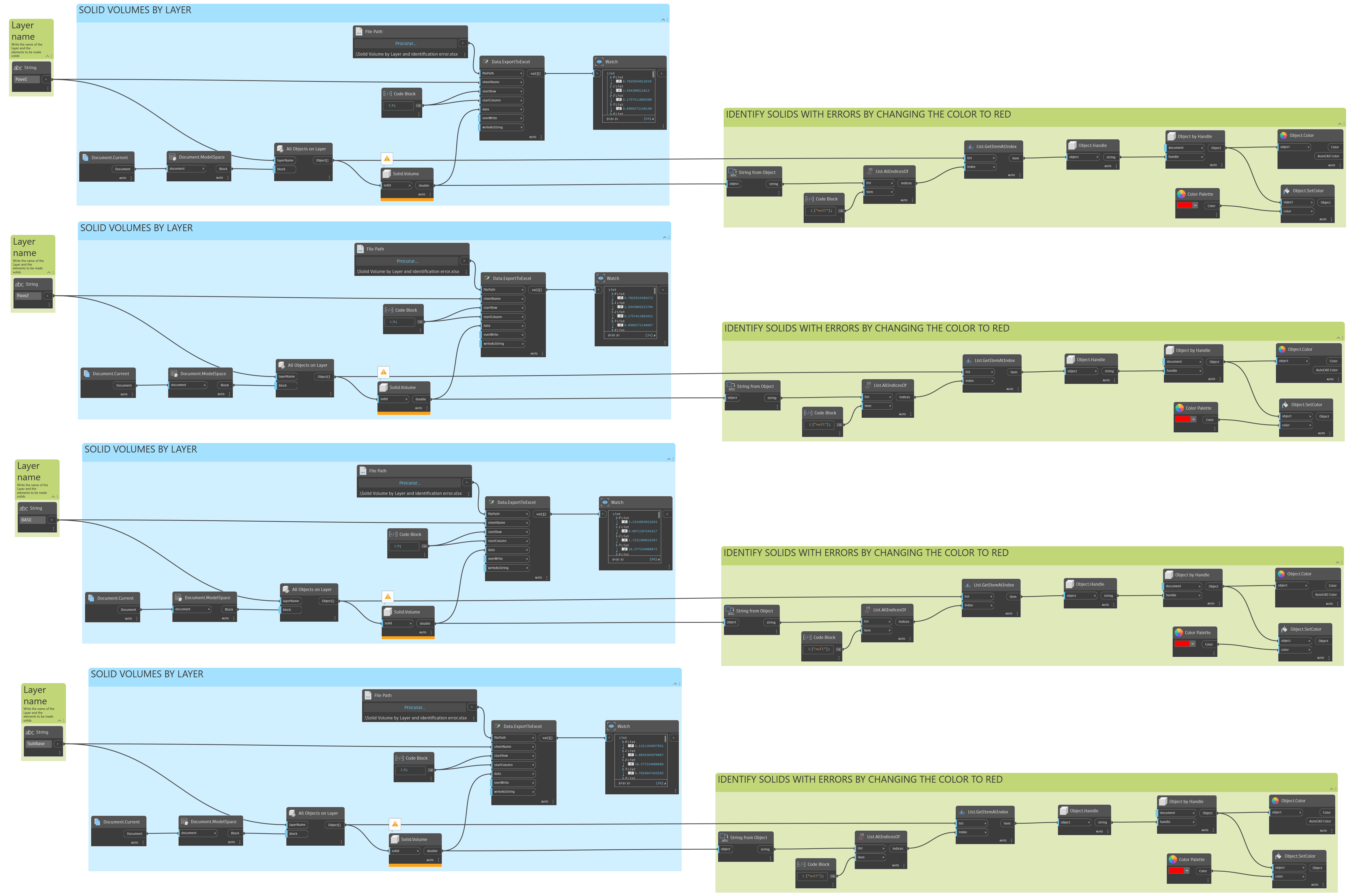

V3 reads the solids by layer, generates the spreadsheet and marks in red which solids presented errors and must be corrected.
Solid Volume_All.xlsx (11.3 KB)
Solid Volume CIVIL3D2025-V1.dyn (14.9 KB)
Exporting corridor solid volumes from a “.dwg” file to Excel, selecting layers.
Solid Volume by Layer.xlsx (13.6 KB)
Solid Volume CIVIL3D2025-V2.dyn (65.2 KB)
Solid Volume by Layer and identification error.
Identify solids with error by changing the color to red.
Solid Volume by Layer and identification error.xlsx (13.6 KB)
Solid Volume CIVIL3D2025-V3.dyn (128.0 KB)
