Select by Family Facing Orientation

Revit
, , ,
1

Hi all,

In our office depending on which way a door is oriented the door tag is either horizontal or vertical. The idea for the script is simple, use FamilyInstance.FacingOrientation, if Vector values for Y = 0 use horizontal tag, if Vector values for X = 0 use vertical tag. The trouble is I don’t understand how to extract the values from the list to separate horizontal and vertical oriented doors.

New to Dynamo, I realize I didn’t get very far with this script….

Any help is much appreciated!

Artyom

Door%20Tag%20Rotation%20Revit
Door Tag Rotation Revit.JPG806×620 19.4 KB

Family%20Instance%20Facing%20Orientation%20Dynamo

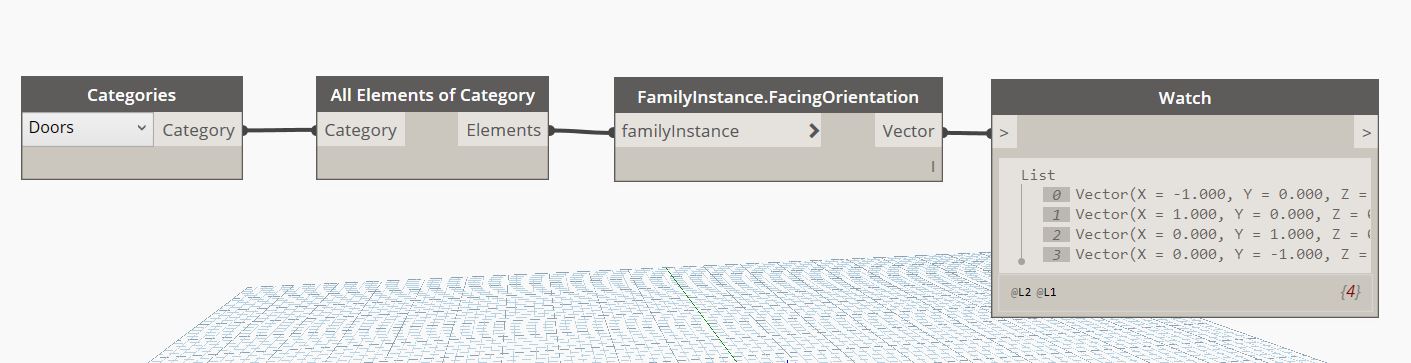

Family Instance Facing Orientation Dynamo.JPG1411×363 64.1 KB

Dynamo File.dyn (2.6 KB)

2

Why not just select the family parameter that tells it to Align with Element and then it will always be parallel to the door?

3

I’ve never seen the parameter you mention, so I’m not sure what you mean. You can’t load a door tag into a door family to align it with the door, nor do door tags have an align to element parameter. Could you clarify?
