Revit API Spot Coordinate Adaptive placement point

Revit
, ,
1

image496×567 71.5 KB

image1053×920 76 KB

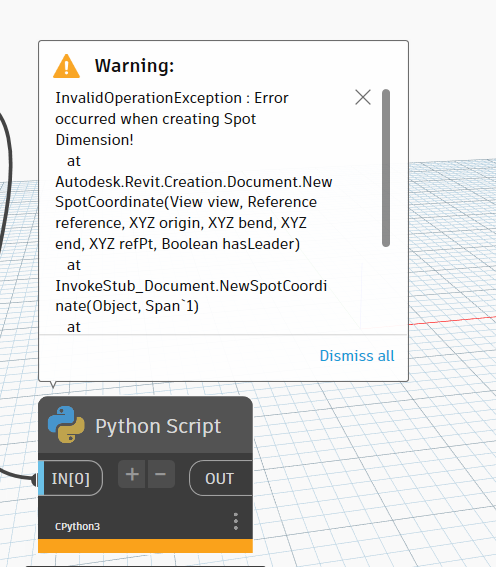

Hello everyone, I try to create script for spot coordinate at adaptive placement point but it error and i don’t know what i wrong.
I have created script spot coordinate for structural framing and it work.

Thank you for your recommend.

2

i would start from here:

“If the reference is not valid or the point cannot be projected to reference correctly, an exception will be thrown.” - revit doc

3

I try doing it for a while i still don’t know how to make it work. can you help me for find correct way? please.

4

im away from rvt these days but to get more help, i suggest u post a sample test case here, or a copy of the adaptive component at least. and there’s actually a posting option for formatted code which would be nice to gain more help.

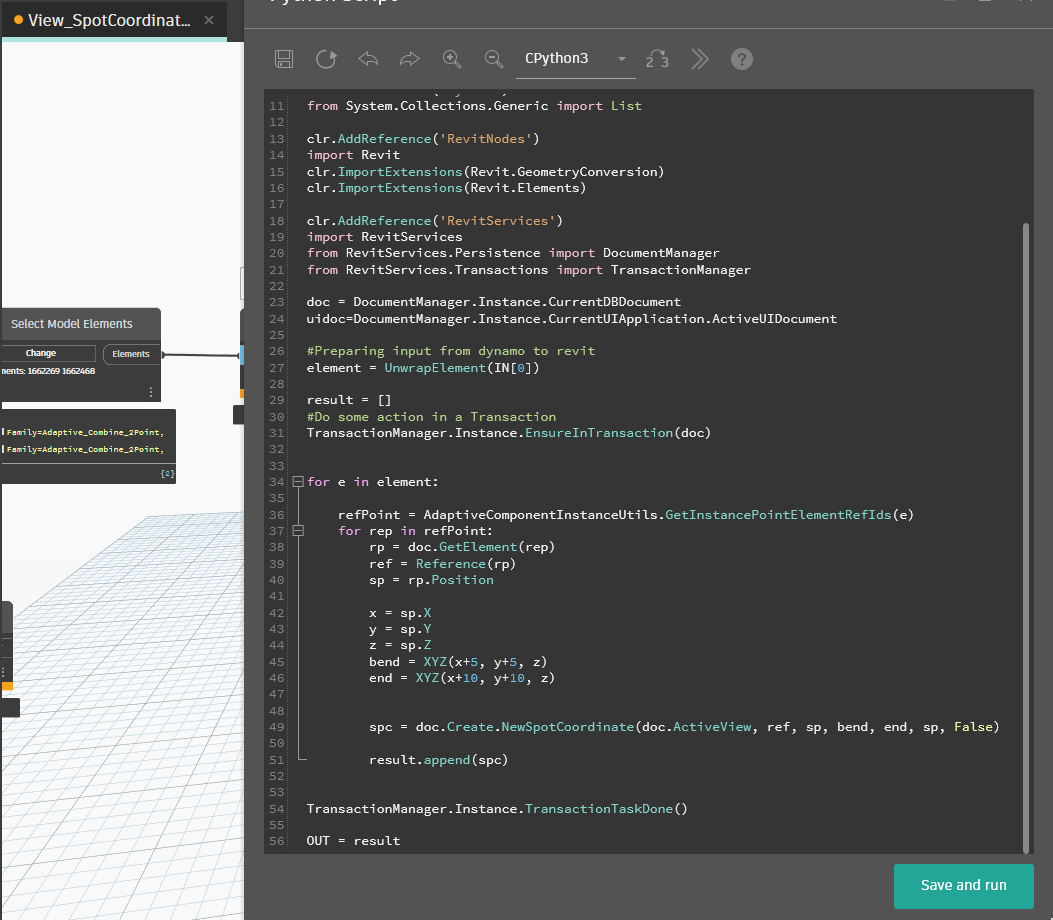

op’s script, for copy-n-paste:
