havent tried and not in dyn, but probably alphashape could work, have sometimes work for me, in these situations
1 Like
hi

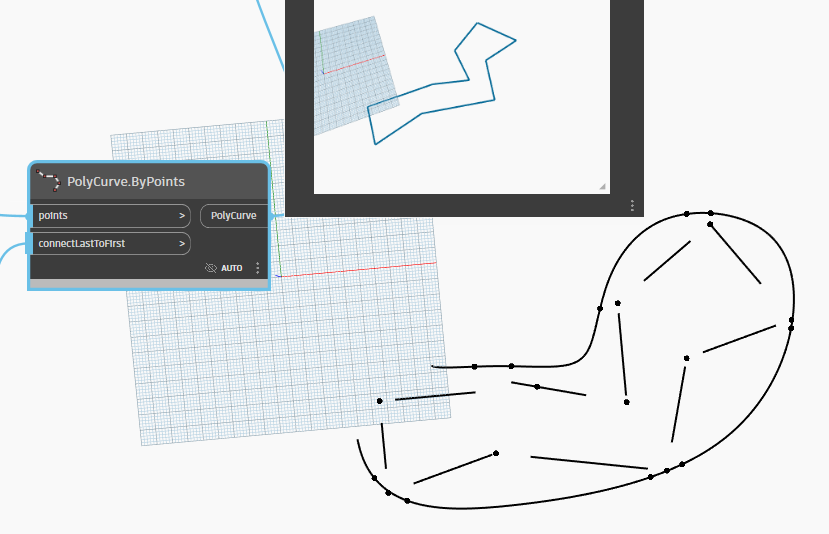

Edit 2: Concave part
There’s a way around this (by drawing a spline around the part) and adapting the script; I’m not good enough at algorithms to write this one.
cordially
christian.stan
2 Likes

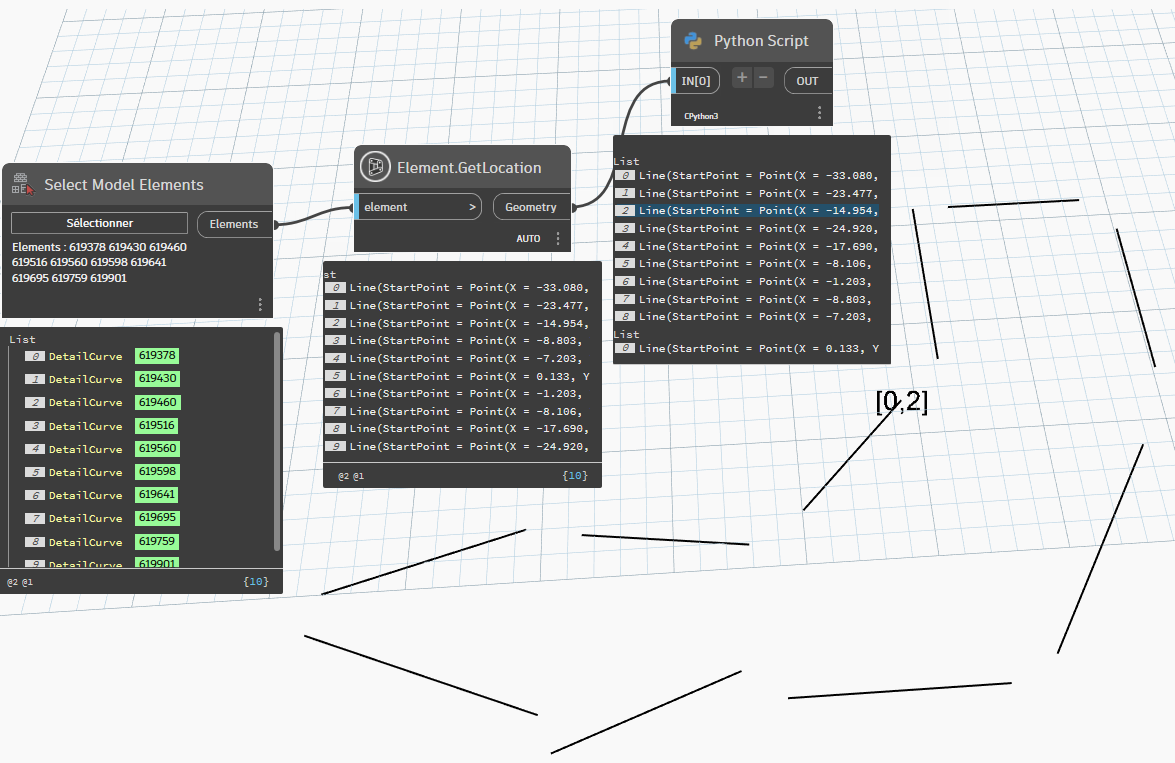

Hi, if any kind soul wants to help me correct my algorithm, you’re welcome.
The first three lines are in order, then something is a bit messy.
import sys
import clr
clr.AddReference('ProtoGeometry')
from Autodesk.DesignScript.Geometry import *
lin=IN[0]
fl=lin[0]
lin.pop(0)
stockorder=[]
stockorder.append(fl)
pext=fl.EndPoint
def reol(p,li,st):
a=[l.ClosestPointTo(p) for l in li]
b=[Geometry.DistanceTo(a,p) for a in a]
i=b.index(min(b))
st.append(li[i])
c=li[i].ParameterAtPoint(a[i])
li.pop(i)
if c==0:
return st[-1].PointAtParameter(1)
else:
return st[-1].PointAtParameter(0)
while len(lin)>1:
reol(reol(pext,lin,stockorder),lin,stockorder)
OUT = stockorder,lin
I start from a random line that I put in stock, I look at the point closest to the next line, I erase it from the stock then start again from the opposite point then from near to near in order to exhaust the quota of starting lines
Thank you.
Sincerely,
Christian.stan
1 Like

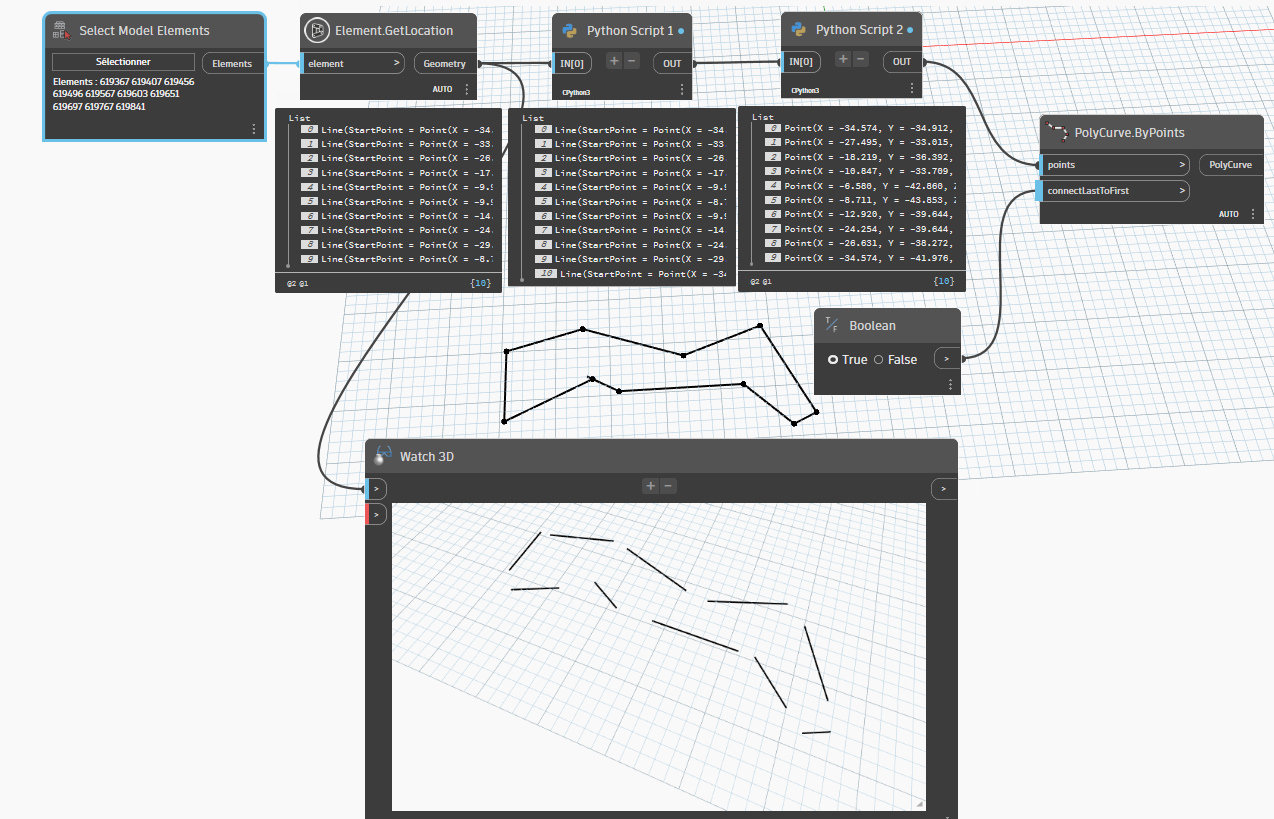

I modified the script to make it work (concave or convex). There will likely be times when it won’t work.
Python script 1
import sys
import clr
clr.AddReference('ProtoGeometry')
from Autodesk.DesignScript.Geometry import *
lin=IN[0]
fl=lin[0]
lin.pop(0)
stockorder=[]
stockorder.append(fl)
pext=fl.EndPoint
def reol(p,li,st):
a=[l.ClosestPointTo(p) for l in li]
b=[Geometry.DistanceTo(a,p) for a in a]
i=b.index(min(b))
st.append(li[i])
c=li[i].ParameterAtPoint(a[i])
li.pop(i)
if c==0:
return st[-1].PointAtParameter(1)
else:
return st[-1].PointAtParameter(0)
b1=reol(pext,lin,stockorder)
boucles=[]
boucles.append(b1)
while len(lin)>0:
boucles.append(reol(boucles[-1],lin,stockorder))
stockorder.append(stockorder[0])
OUT = stockorder
Python Script 2
import sys
import clr
clr.AddReference('ProtoGeometry')
from Autodesk.DesignScript.Geometry import *
lin=IN[0]
def pint(l1,l2):
if round((l1.EndPoint.X - l1.StartPoint.X),3)==0:
c=round((l2.EndPoint.Y - l2.StartPoint.Y),5)/round((l2.EndPoint.X - l2.StartPoint.X),5)
d=l2.StartPoint.Y-c*l2.StartPoint.X
return Point.ByCoordinates(l1.StartPoint.X,c*(l1.StartPoint.X)+d,l1.StartPoint.Z)
if round((l2.EndPoint.X - l2.StartPoint.X),3)==0:
a=round((l1.EndPoint.Y - l1.StartPoint.Y),5)/round((l1.EndPoint.X - l1.StartPoint.X),5)
b=l1.StartPoint.Y-a*l1.StartPoint.X
return Point.ByCoordinates(l2.StartPoint.X,a*(l2.StartPoint.X)+b,l2.StartPoint.Z)
else:
a=round((l1.EndPoint.Y - l1.StartPoint.Y),5)/round((l1.EndPoint.X - l1.StartPoint.X),5)
b=l1.StartPoint.Y-a*l1.StartPoint.X
c=round((l2.EndPoint.Y - l2.StartPoint.Y),5)/round((l2.EndPoint.X - l2.StartPoint.X),5)
d=l2.StartPoint.Y-c*l2.StartPoint.X
return Point.ByCoordinates((d-b)/(a-c),a*(d-b)/(a-c)+b,l1.StartPoint.Z)
OUT = [pint(lin[i+1],lin[i]) for i in range(0,len(lin)-1)]
(A new post for greater clarity.)
Python scripts are certainly improvable (everyone does it with their own skills).
Sincerely,
christian.stan
Thank you so much for your help! I really appreciate that you took the time to assist me.

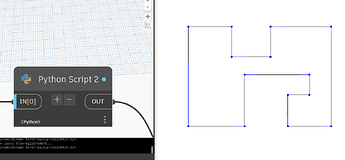

I tried running the script you shared, but I’m getting an error in the script 2 and I’m not quite sure why. I’ll attach a screenshot of the error here in case you can help me figure out what might be going wrong.
Thanks again for your time and effort!
1 Like
Hi, did you copy and paste the code or did you retype it?
It’s weird, I deleted the division by zero thing for a line parallel to the y-axis. Do you have two successive lines in the same extension?
Send me a screenshot of your “pseudo zone.”

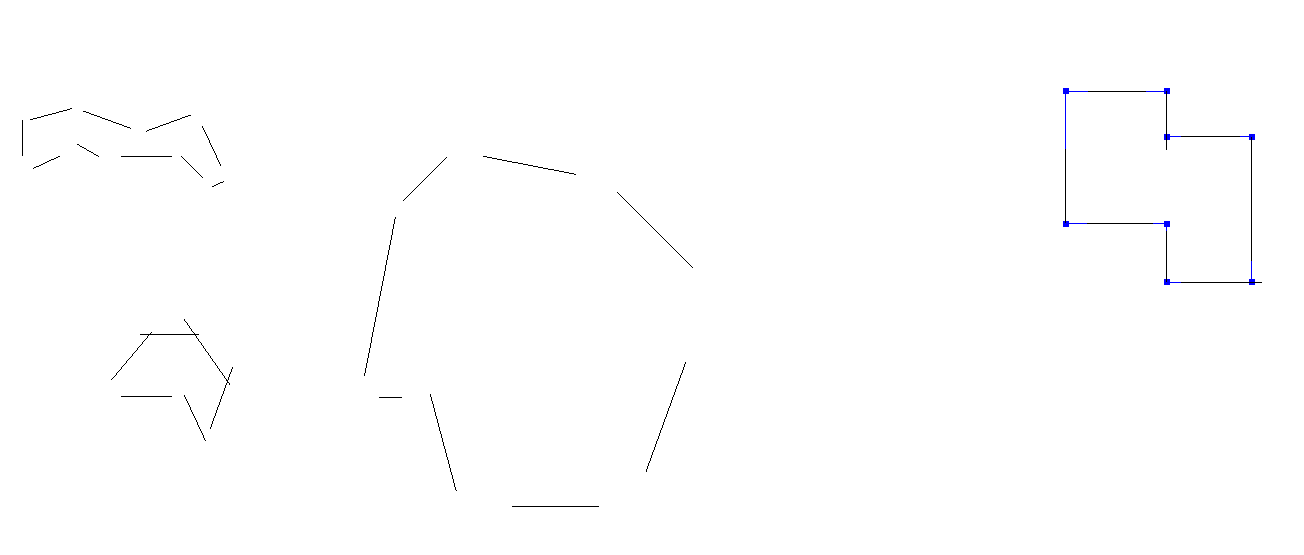

i tried it with this areas
edit:
I’m on the weekend in 5 minutes. I’ll check on Tuesday.
Have a good weekend everyone.

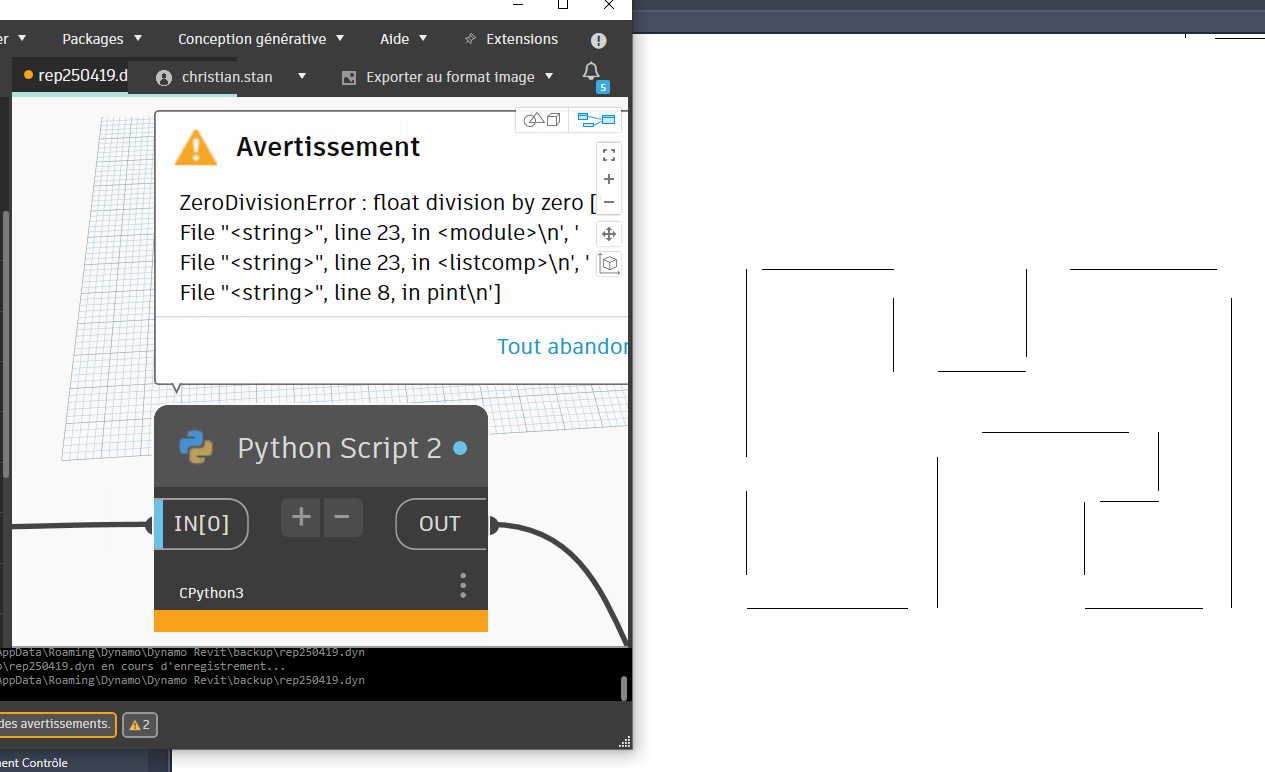

for this situation:
if i delete line //
Sincerely,
christian.stan
1 Like

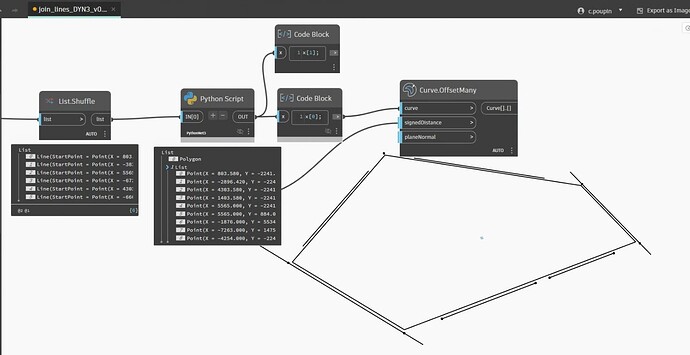

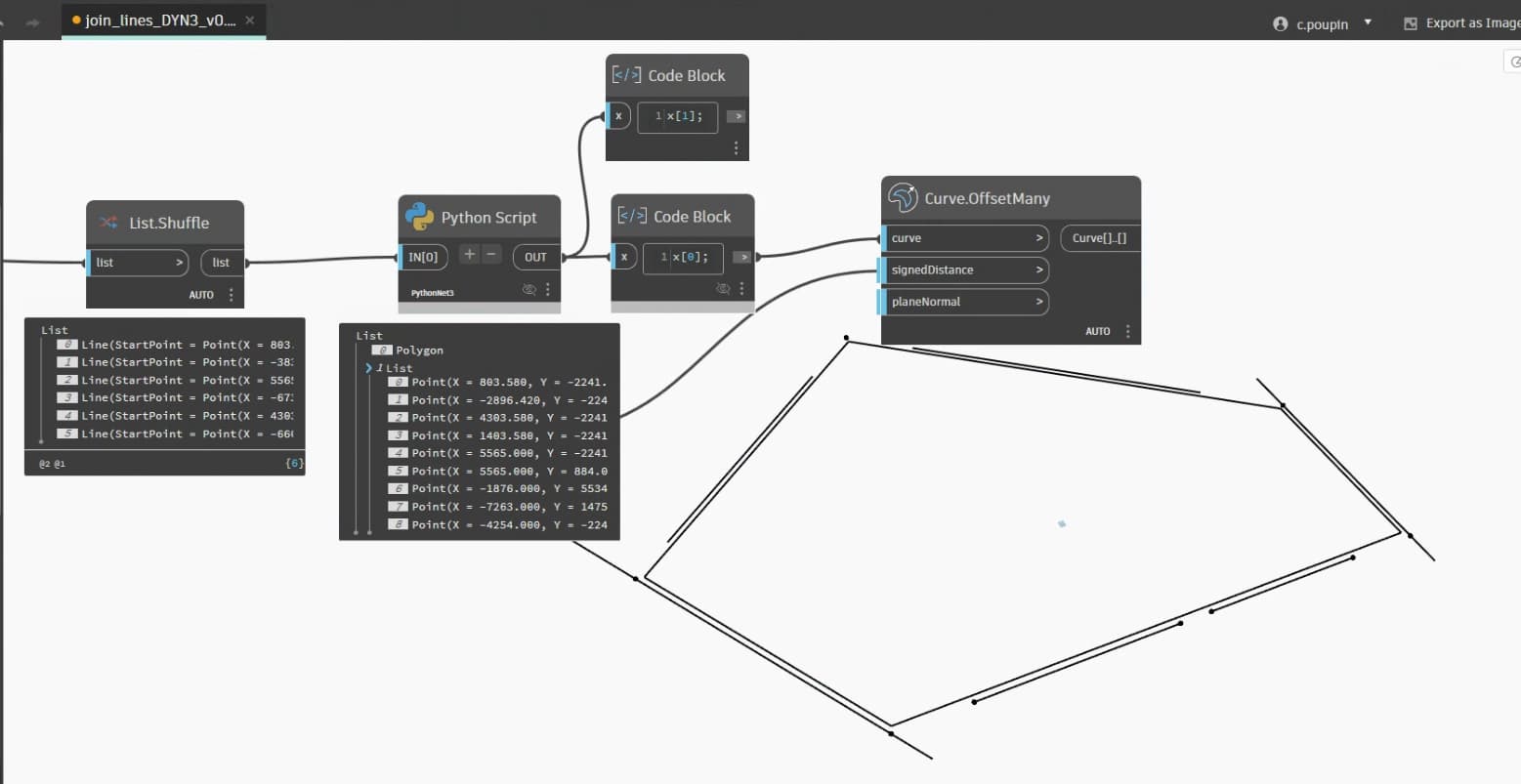

Hi,
a test using Equations of Lines
# Load the Python Standard and DesignScript Libraries
import sys
import clr
clr.AddReference('ProtoGeometry')
from Autodesk.DesignScript.Geometry import *
def compute_intersection(lineA, lineB):
"""Compute intersection point of 2 lines"""
x1, y1 = lineA.StartPoint.X, lineA.StartPoint.Y
x2, y2 = lineA.EndPoint.X, lineA.EndPoint.Y
x3, y3 = lineB.StartPoint.X, lineB.StartPoint.Y
x4, y4 = lineB.EndPoint.X, lineB.EndPoint.Y
denom = (x1 - x2)*(y3 - y4) - (y1 - y2)*(x3 - x4)
print(denom)
if abs(denom) < 0.001:
return None, None # lines are parallel
px = ((x1*y2 - y1*x2)*(x3 - x4) - (x1 - x2)*(x3*y4 - y3*x4)) / denom
py = ((x1*y2 - y1*x2)*(y3 - y4) - (y1 - y2)*(x3*y4 - y3*x4)) / denom
return px, py
def ordered_curves(lines):
ordered_curves = [lines.pop(0)]
n = 1
while lines and n < 200:
n += 1
lines.sort(key = lambda x : ordered_curves[-1].DistanceTo(x))
ordered_curves.append(lines.pop(0))
return ordered_curves
lines = IN[0]
perimeter_points = []
lines_ordered = ordered_curves(lines)
lines_ordered.append(lines_ordered[0])
for idx, lineB in enumerate(lines_ordered):
if idx > 0:
lineA = lines_ordered[idx - 1]
x, y = compute_intersection(lineA, lineB)
if x is None:
perimeter_points.extend([lineA.StartPoint, lineA.EndPoint, lineB.StartPoint, lineB.EndPoint])
else:
perimeter_points.append(Point.ByCoordinates(x, y, lineB.StartPoint.Z))
polygon = Polygon.ByPoints(perimeter_points)
OUT = polygon, perimeter_points
2 Likes
Hello and thank you for the code, better thought out and done, congratulations.
Sincerely
christian.stan
2 Likes

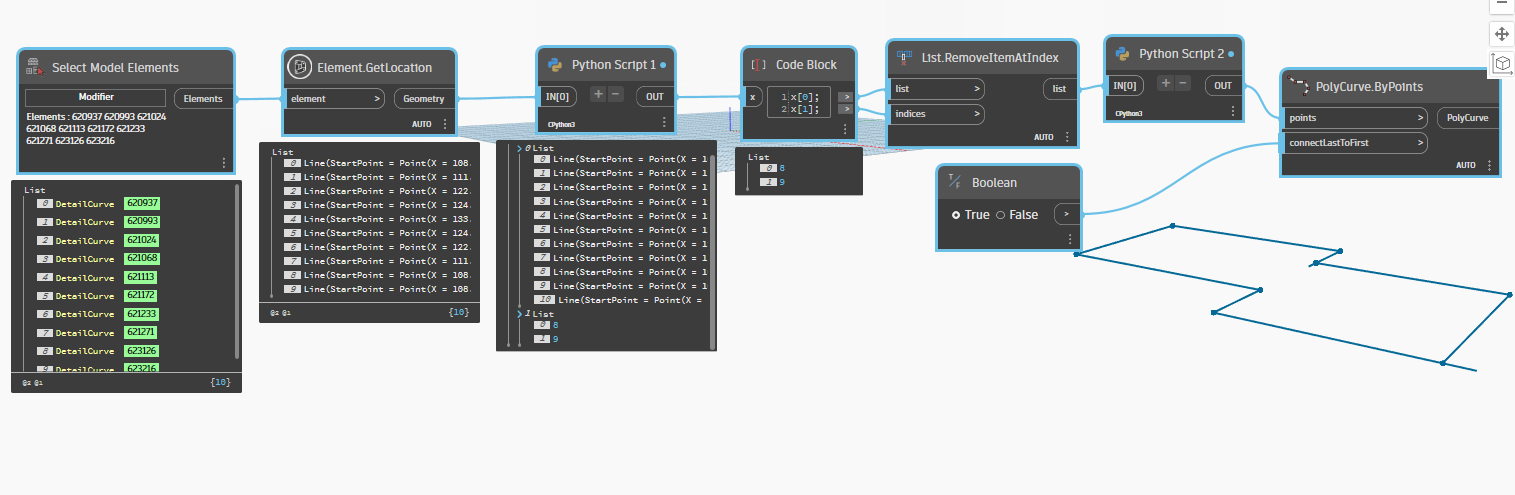

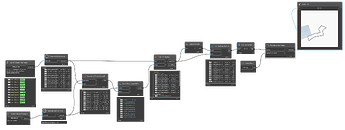

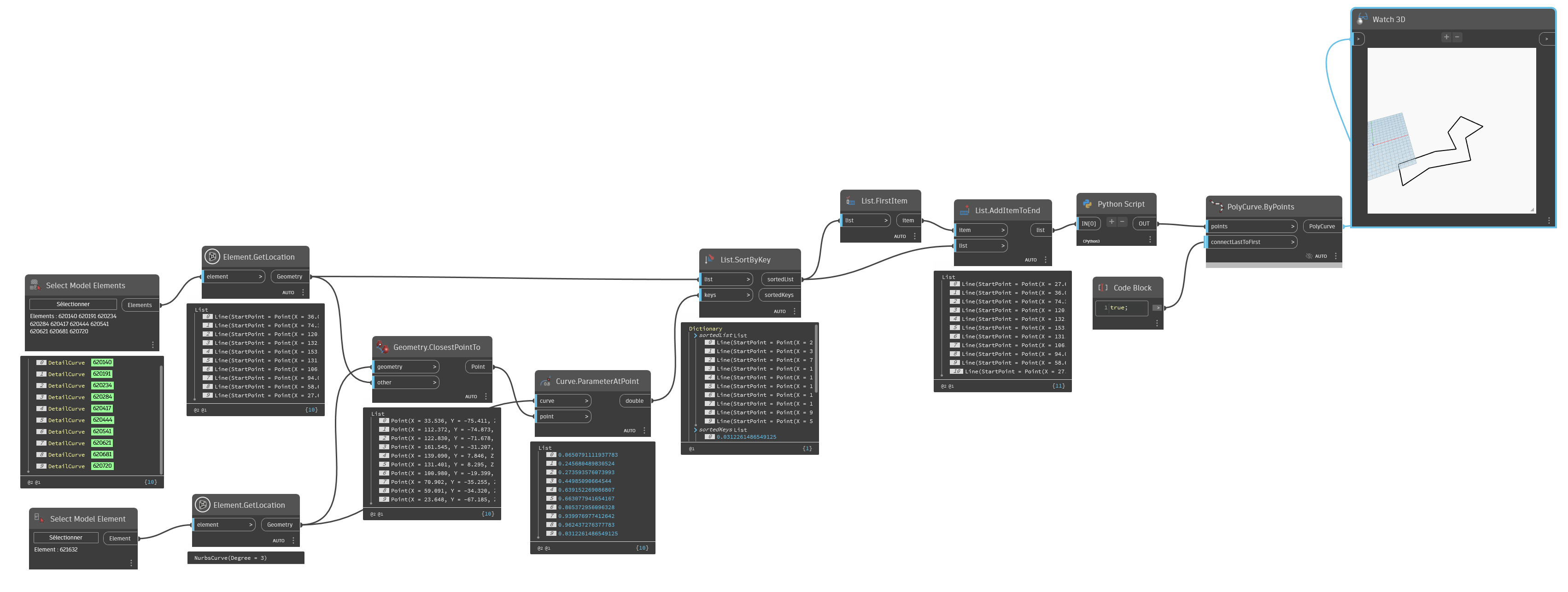

Hi, to avoid manual deletion, here’s PythonScript1, modified and nodes added (I had a problem with the pop and range methods).
Python script1
import sys
import clr
clr.AddReference('ProtoGeometry')
from Autodesk.DesignScript.Geometry import *
lin=IN[0]
fl=lin[0]
lin.pop(0)
stockorder=[]
stockorder.append(fl)
pext=fl.EndPoint
def reol(p,li,st):
a=[l.ClosestPointTo(p) for l in li]
b=[Geometry.DistanceTo(a,p) for a in a]
i=b.index(min(b))
st.append(li[i])
c=li[i].ParameterAtPoint(a[i])
li.pop(i)
if c==0:
return st[-1].PointAtParameter(1)
else:
return st[-1].PointAtParameter(0)
b1=reol(pext,lin,stockorder)
boucles=[]
boucles.append(b1)
while len(lin)>0:
boucles.append(reol(boucles[-1],lin,stockorder))
stockorder.append(stockorder[0])
idx=[i for i in range(len(stockorder)-1) if round(abs(Vector.AngleAboutAxis(stockorder[i].Direction,stockorder[i+1].Direction,Vector.ByCoordinates(0,0,1))),0)==0 or round(abs(Vector.AngleAboutAxis(stockorder[i].Direction,stockorder[i+1].Direction,Vector.ByCoordinates(0,0,1))),0)==180 ]
OUT =stockorder,idx
Python script2
import sys
import clr
clr.AddReference('ProtoGeometry')
from Autodesk.DesignScript.Geometry import *
lin=IN[0]
def pint(l1,l2):
if round((l1.EndPoint.X - l1.StartPoint.X),3)==0:
c=round((l2.EndPoint.Y - l2.StartPoint.Y),5)/round((l2.EndPoint.X - l2.StartPoint.X),5)
d=l2.StartPoint.Y-c*l2.StartPoint.X
return Point.ByCoordinates(l1.StartPoint.X,c*(l1.StartPoint.X)+d,l1.StartPoint.Z)
if round((l2.EndPoint.X - l2.StartPoint.X),3)==0:
a=round((l1.EndPoint.Y - l1.StartPoint.Y),5)/round((l1.EndPoint.X - l1.StartPoint.X),5)
b=l1.StartPoint.Y-a*l1.StartPoint.X
return Point.ByCoordinates(l2.StartPoint.X,a*(l2.StartPoint.X)+b,l2.StartPoint.Z)
else:
a=round((l1.EndPoint.Y - l1.StartPoint.Y),5)/round((l1.EndPoint.X - l1.StartPoint.X),5)
b=l1.StartPoint.Y-a*l1.StartPoint.X
c=round((l2.EndPoint.Y - l2.StartPoint.Y),5)/round((l2.EndPoint.X - l2.StartPoint.X),5)
d=l2.StartPoint.Y-c*l2.StartPoint.X
return Point.ByCoordinates((d-b)/(a-c),a*(d-b)/(a-c)+b,l1.StartPoint.Z)
OUT = [pint(lin[i+1],lin[i]) for i in range(0,len(lin)-1)]
Sincerely,
christian.stan
1 Like
