Hi all,
I need to select families that are shared families. Is it possible to do that with dynamo or python?
Input - a list with a number of families
Output - boolean with the ones that are shared families.
Thank you!
Hi all,
I need to select families that are shared families. Is it possible to do that with dynamo or python?
Input - a list with a number of families
Output - boolean with the ones that are shared families.
Thank you!
Hello

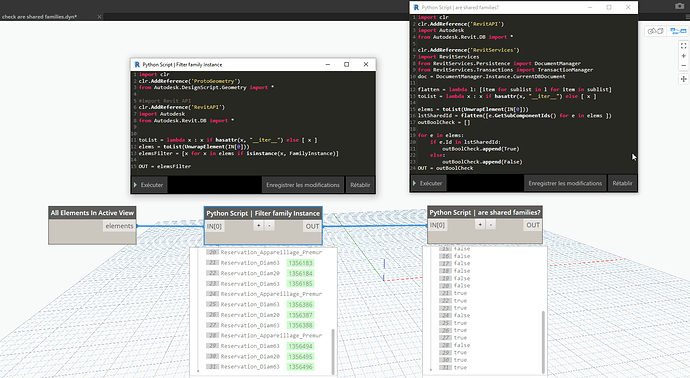

a solution with GetSubComponentIds() method
EDIT : oups! Corrected code
import clr
clr.AddReference('RevitAPI')
import Autodesk
from Autodesk.Revit.DB import *
clr.AddReference('RevitServices')
import RevitServices
from RevitServices.Persistence import DocumentManager
from RevitServices.Transactions import TransactionManager
doc = DocumentManager.Instance.CurrentDBDocument
flatten = lambda l: [item for sublist in l for item in sublist]
toList = lambda x : x if hasattr(x, "__iter__") else [ x ]
elems = toList(UnwrapElement(IN[0]))
lstSharedId = flatten([e.GetSubComponentIds() for e in elems ])
outBoolCheck = []
for e in elems:
if e.Id in lstSharedId:
outBoolCheck.append(True)
else:
outBoolCheck.append(False)
OUT = outBoolCheck
Try the following code to get only the families out that have shared parameter ticked
#Created By Brendan Cassidy
import clr
# Import RevitAPI
clr.AddReference("RevitAPI")
import Autodesk
from Autodesk.Revit.DB import *
output=[]
#May need to change IN[0] to UnwrapElement(IN[0])
for a in IN[0]:
for b in a.Family.Parameters:
if b.Name == "Shared":
if b.Value == 1:
output.append(a)
OUT = output
Thanks both for your help!!
