How to get detail lines in output

Developers
,
1

Hi There

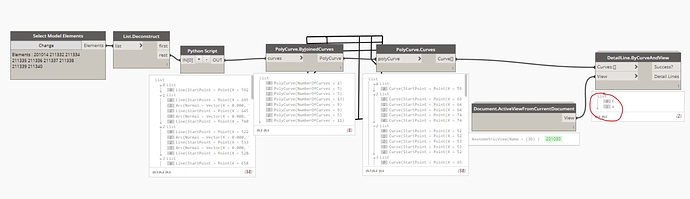

Can you please answer how to get detail lines in output. As circled in image in Red, in view when i apply curve i don’t get detail lines in output. Can you please suggest how to get it done. Suggest if it is also can be achieved with Python.

82
82.JPG1898×549 73.7 KB

2

@robert12546358
i think you should use plan or section view not the 3D view

2 Likes
3

Try in Revit,
you cannot place detail lines in a 3D View

1 Like
