How to change the element System Type using Dynamo

Revit
1

Hi Guys,

I am very new to DynamoBIM, and I need you guys to help me do my first program.
I want to change the system type of an element from one to another.
For e.g Duct system type change from “Supply Air” to “Supply Air Duct”.
Note: Both type system classification is same, which is Supply air
I uploaded a screenshot for easy understanding.
Please guide me to get it done. I tried few methods, its not working for me.

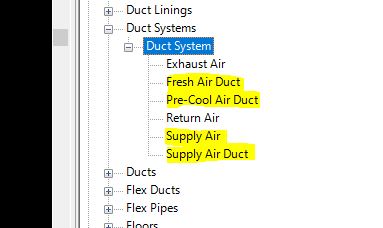

Duct System Type.JPG665×519 57.6 KB

Thanks in advance
Radish G

2

Hi @santhorathi

Use Element.SetParameter node and connect your desired system type.

ic-7667.png1779×414 248 KB

3

Hi @Kulkul,

Thanks a lot for our instant reply, if you don’t mind can share the full program screenshot with me. I am too new to this DynamoBIM.

Thanks in advance
Radish G

4

I have created GIF showing the process in action.

Duct System.gif1899×900 1.03 MB

1 Like
5

Hi @Kulkul,

Hi, actually Now I can’t create duct routing with other system classification, which means I can’t create a Return or Exhaust system. If I create a Return Air system it automatically change to Supply Air.
What I want is, I have few System types under same system classification (Supply Air)
System Types.

  1. Supply Air,
  2. Supply Air Duct,
  3. Fresh Air Duct,
  4. Pre-Cool Air Duct.
    All the above are under Supply Air system classification.
    What I want is, Supply Air (System Type) should change to Supply Air Duct (System Type). The remaining item’s 3 & 4 should be remain.
    If I understand properly, this program change all the ducts to one system type.
    Please help me to look into it
    Attached screenshot for your reference…,

    Thank you so much for your kind support.

Radish G

6

I’m also new to Dynamo, and I was trying to change the CurtainSystemType. Your Gif really helped me a lot. Just reply to say thank you : )

2 Likes
7

Hi Guys,

Can some one help me on this.

8

If I understand correctly you have ducts modeled as Supply Air, Fresh Air Duct, and Pre-Cool Air Duct and you want to change only the Supply Air systems to Supply Air Duct. If that’s correct you need to filter your elements before you change the type.

image.png1385×637 137 KB

5 Likes
