Get geometry of stair path

revit

#1

Dear all,

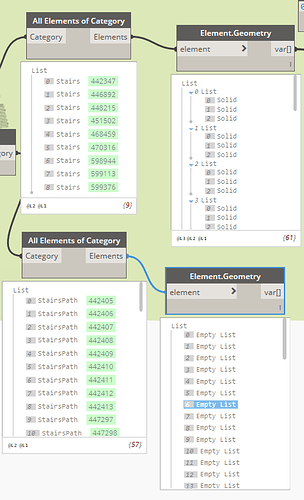

I want to get geometry of stair path like the node Element.Geometry do, which can convert stair to solids. However, it cannot visualize stair path.


On the other hand, stair path can be seen clearly in Revit 3D view.

So does anybody can visualize stair path in Dynamo?


#2

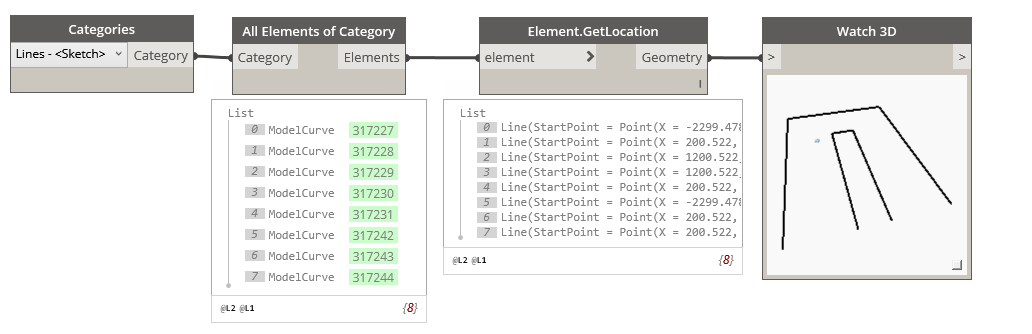

@Terry.X Not exactly what you seem to want, but might help …


#3

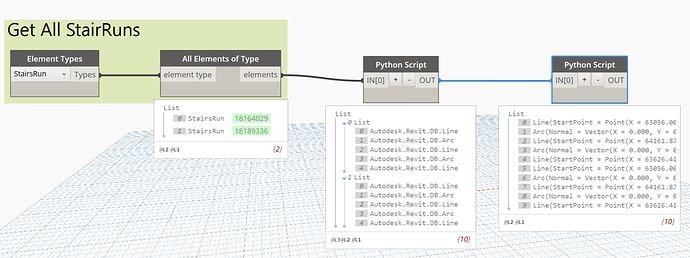

Here a script to get the Lines from a StairRun

getstairlines.dyn (3.8 KB)


StairsPath to line/curves
