Get Coordination with circle from cad file

Hey Guys,

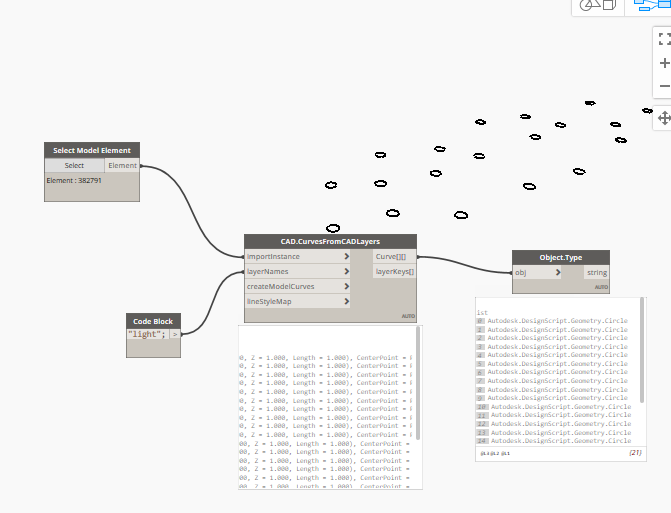

I will place light based on a cad I need coordination value each circle.but.I got a circle type. I can’t convert to point from circle format

Hi @vigneshkumar,

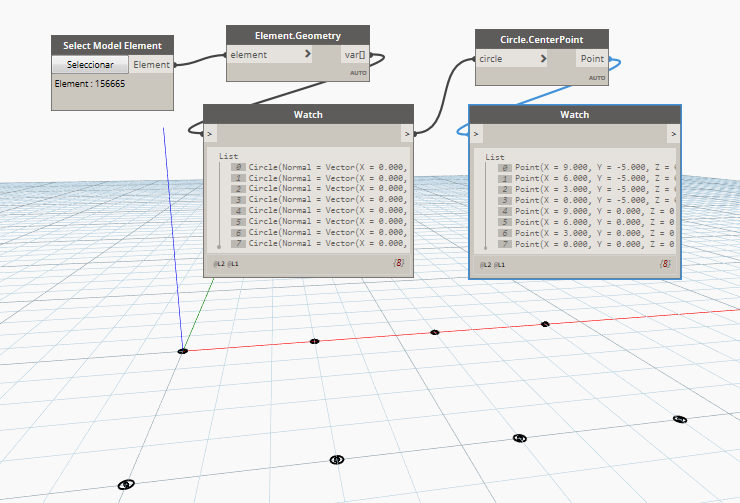

Once you have selected your CAD drawing, you need to extract the geometry to Dynamo, then you can ask to the circles for their center points and you can use that points to introduce Revit’s families of lights in the future.

Best Regards

thank lot for giving a solution
