Find overlapping parts in revit between parts

[dclunie]

Hi all

I have the challenge to find parts that intersect with others, but I would like a visual marker to identify and place a warning family at an intersection point.

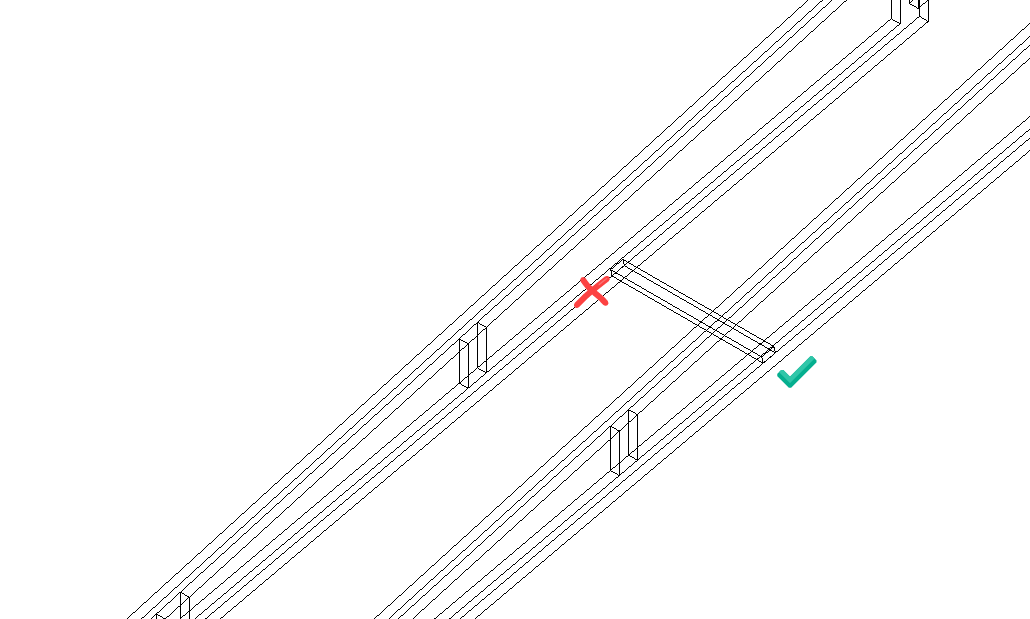

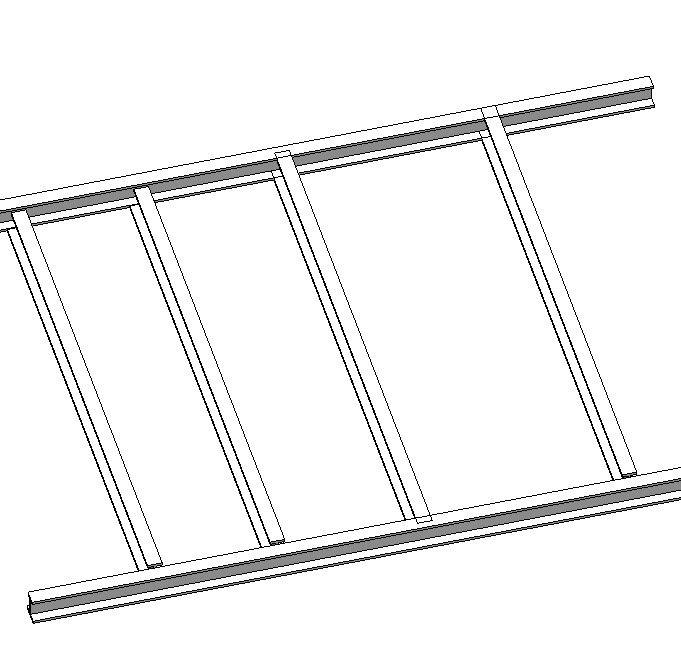

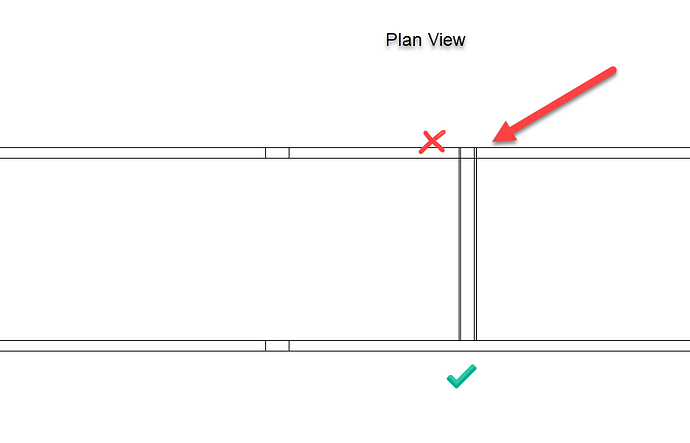

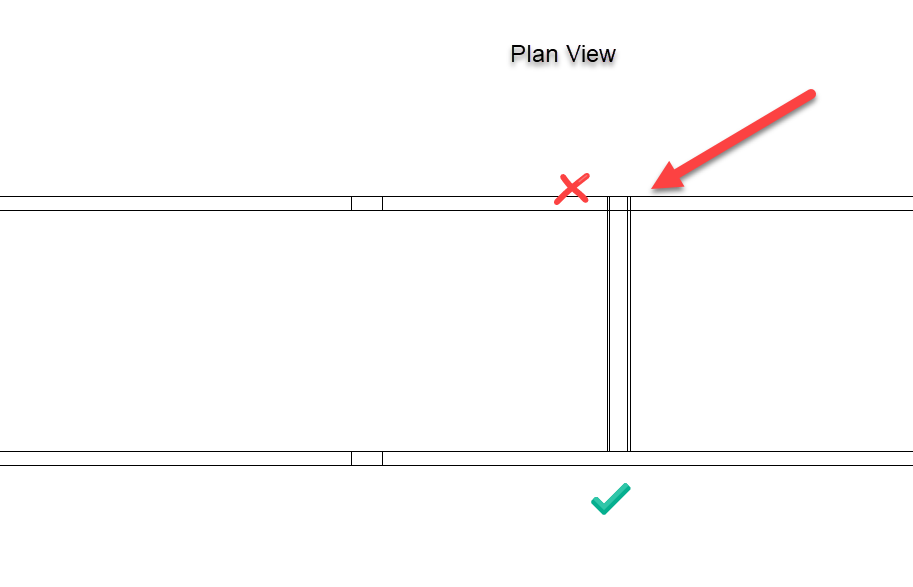

We essentially place brace timbers between roof trusses to support the sheathing board when fitted in manufacturing. In some cases, the parts are mistakenly dragged or trimmed incorrectly, and this is quite hard to spot on the revit projects.

Is there a way using dynamo to look at parts and if and overlap found between geometry to place an error marker family like a red x at the point of intersection.

[volkan.isik]

Hi @dclunie

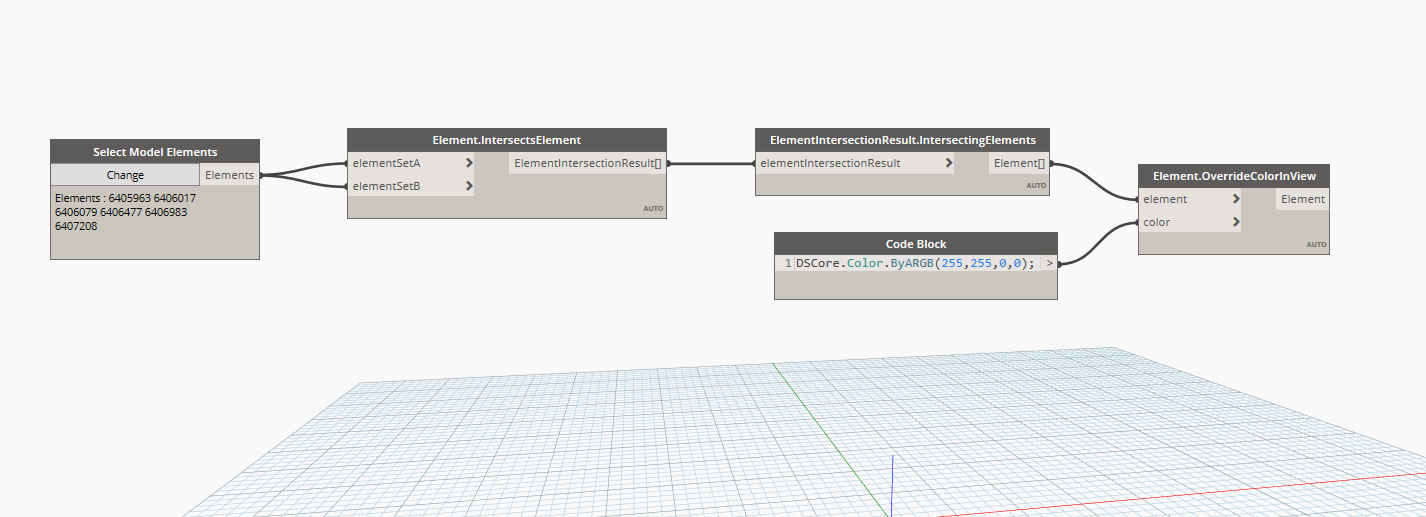

It is possible to detect the colliding elements and color them.

Are you on a quest like this?

[dclunie]

Hi

Thanks for this, ideally I would like it to look at all elements of structural Framing in the active view and give the result.

Colouring is ok

Can you tell me which package are these from?

[volkan.isik]

Hi,
You can find bimorphNodes Packages
