Crop region offset for elevation

[dong2K8UG]

Hi All,
I would like to offset the crop region inward in all my elevation view by 5mm, is that possible for dynamo? Thank in advance!

[GavinNicholls]

Yes curves can be offset. You’d need to scale it if you mean 5mm at sheet scale though.

Cropboxes can be retrieved and set using ootb nodes in 2023+ I think, otherwise MEPover has nodes for this.

[sovitek]

yes mepover

[dong2K8UG]

Hi, thank for the response!

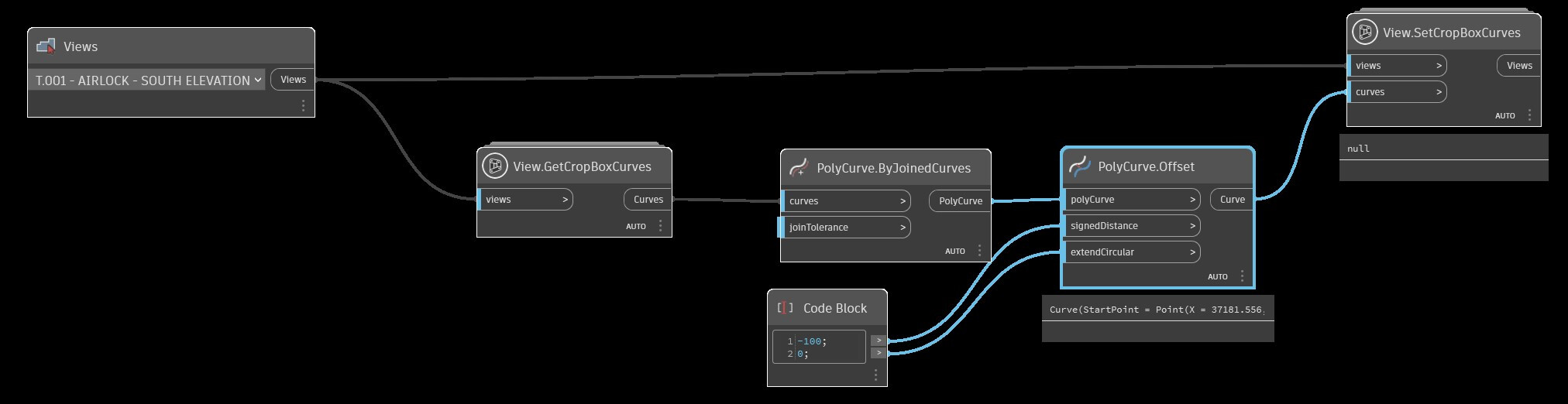

I have done the same thing but the node ‘get curve’ give ‘null’, any advise?

[sovitek]

hi @dong2K8UG you are sure you have dynamoironpython package 2.7 installed? if you go with mepover…try viewcrop by curves from mepover, as the ootb you use expect a boundingbox

[dong2K8UG]

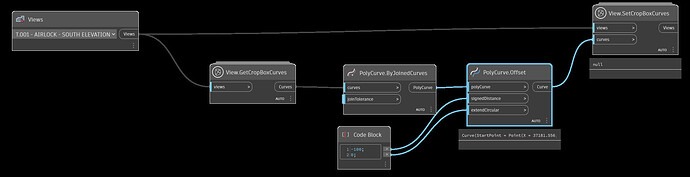

Many thank, still something isn’t right here, is it the node ‘polycurve.offset’ not working, I don’t see the node ‘polycurve.offsetmany’ anywhere…

[sovitek]

its becoarse it first come in 2024 i guess…try with a geometry explode before setcropview…

[dong2K8UG]

It works. Thank you!

[RevitRobot]

I always use the Crump package for getting the curves in Dynamo R22
