Hello,

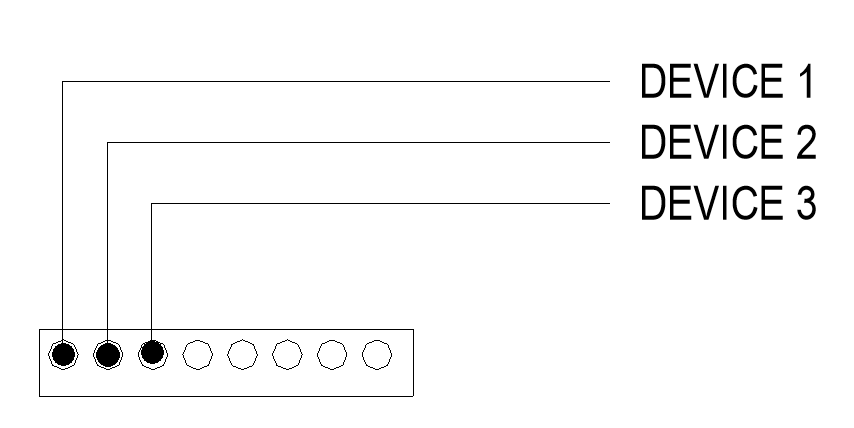

I am trying to automate a single line diagram using a schedule. The diagram are devices connected to an 8 bit processing board using lines at 90 degrees. So if the first three devices fall on the first three positions on the board the diagram needs to look like below:
The positions of the devices are located in a schedule. Is it possible to draw this diagram in a drafting view using dynamo? (The part where it says "device 1’ will actually be a text that is extracted from a combined parameter in the schedule.)
