Create Vertical section

Packages
1

Hi all,

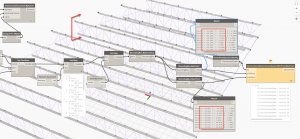

Is there a way to create a VERTICAL section with Dynamo. In my project the sectionview.bycoordinate… gives me horizontal sections, which give me in fact plan views. In my case I want to create “elevation” views of each truss in my exemple. Besides this time the truss is parallel to the global X-axis. It could also happen that the path of the truss is parallel to Y or somewhere in between (looking in planview). See screen shot below. Can anyone help on this?

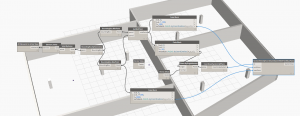

2015-01-23_16-30-44

2

Would anyone has ideas he/she wants to share with me on this?

Thx!

3

You have to play with the coordinate system. Sections Look from XY plane of the coordinate system to the +Z direction.

Yours is probably looking up.

4

section
