Converting AutoCAD.DatabaseServices.Entity to AutoCAD.DynamoNodes.Object

Civil 3D
,
1

Hi,

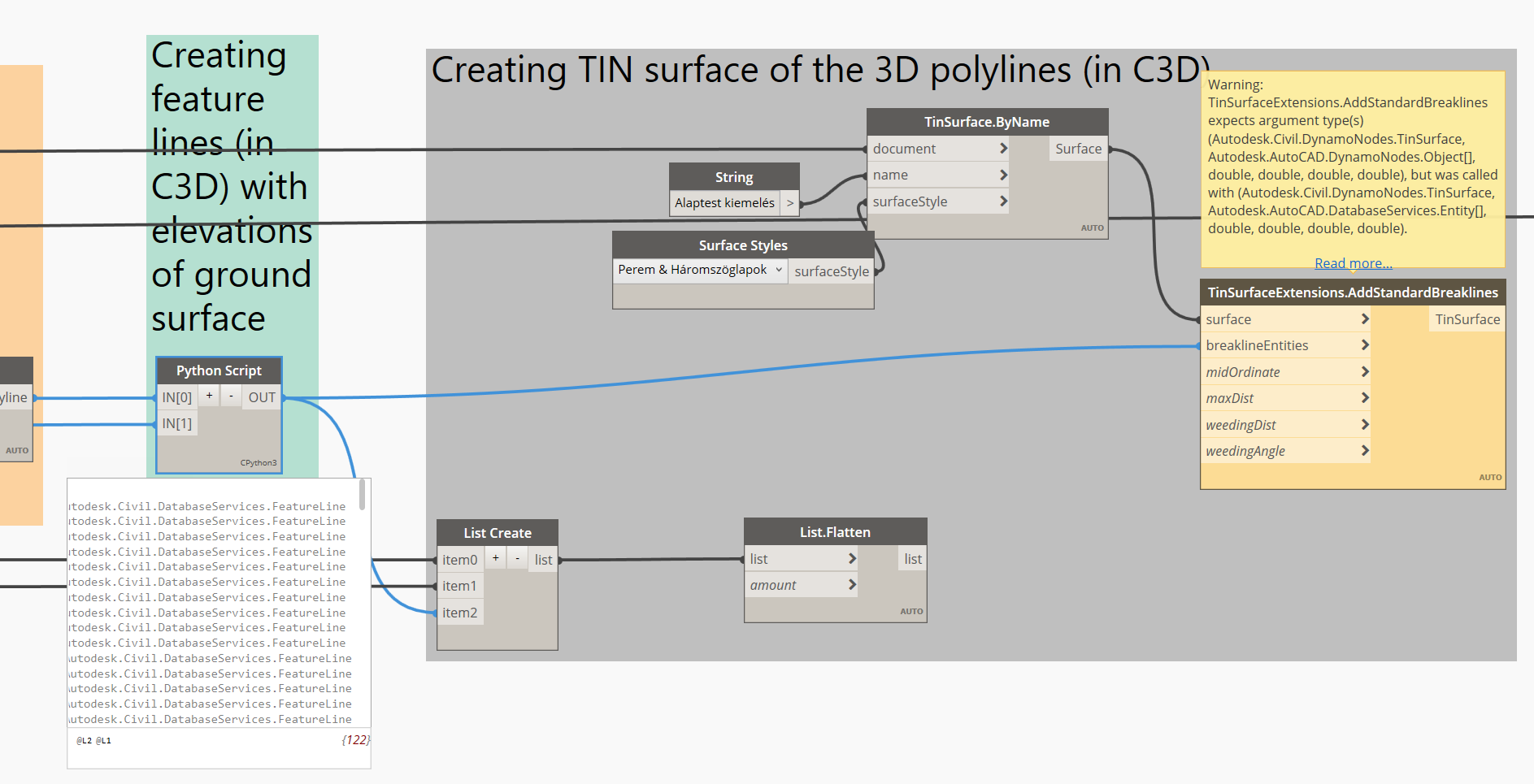

I’ve created feature lines in a Python Node and my results are a list of Autodesk.Civil.DatabaseServices.FeatureLine. I tried to use them to make a TIN surface but as the warning says, it needs Autodesk.AutoCAD.DynamoNodes.Object instead of Autodesk.AutoCAD.DatabaseServices.Entity.

So how can I get Autodesk.AutoCAD.DynamoNodes.Object from Autodesk.Civil.DatabaseServices.FeatureLine?

image1887×965 142 KB

2

Hi,

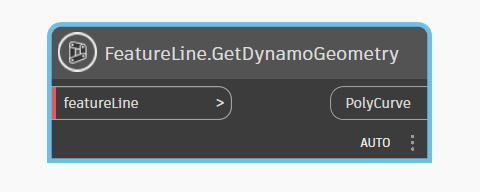

Use Featureline.GetDynamoGeometry from ArkanceSystems.

2 Likes
3

Unfortunately it expects different object than I have.

image885×600 56.3 KB

4

try
at picture 1

use Convert to Camber Object node

5

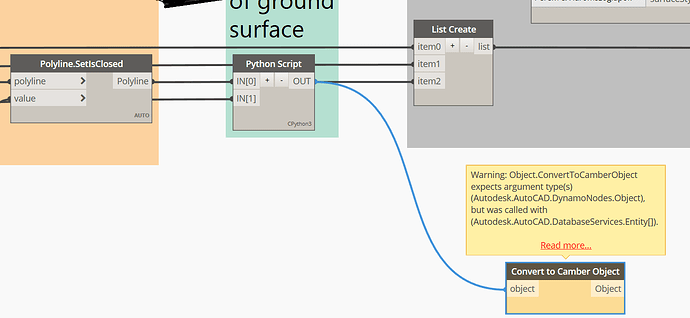

This also gives me a warning.

image1400×647 58.6 KB

6

You can go through
Python

SurfaceDefinitionBreaklines Class

7

I meet the same problem.Have you solved yet?

8

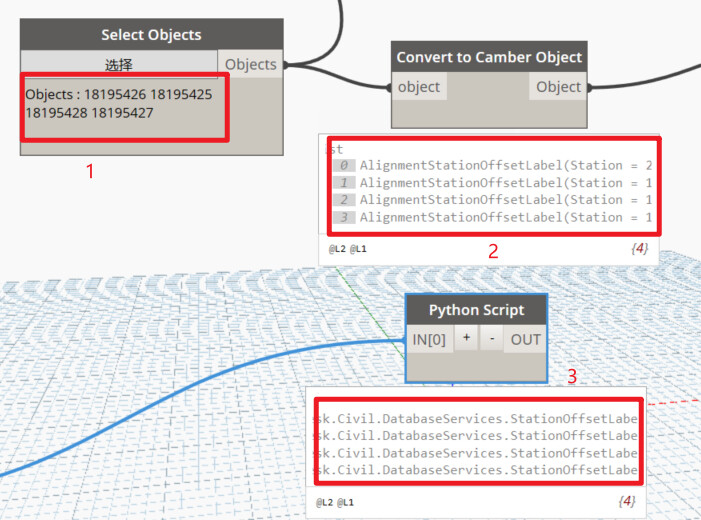

3c1c9346b945d15483a25c4b1ef8967d
3c1c9346b945d15483a25c4b1ef8967d701×520 117 KB

9

how to convert “3“data type to “1“ or “2“?
