Cogo point label direction

1

Hi All,
I`m new as a Dynamo user. I have several objects in drawing: COGO Points and polylines/feature lines.
The coordinates of the polyline’s points match with COGO Points location.
As you know there is a possibility to rotate COGO Point Label using handles - you need to hover the mouse cursor and just wait.
Is it possible using Dynamo automatically rotate COGO Points and/or COGO Points Labels and get rotation angle similar to previous/next to points segment’s direction?
For example I did it manually (I rotated COGO Points and COGO Points Labels together to direction of previous polyline’s segment’s direction). Start of polyline is on left side.

3
3705×572 7.96 KB

Hope that it is possible. Thanks in advance.

2

Any suggestions?

3

Hi @Egorka

Is this what you’re trying to get?

image2647×635 86 KB

1 Like
4

How on earth do you know that :open_mouth:?
You’re amazing!

5

Thanks!

I’m just trying to help/support @Paolo_Emilio_Serra1.

6

That looks like what I am trying to achieve.
May I ask. What is in the python script?
Thank you

7

Try this:

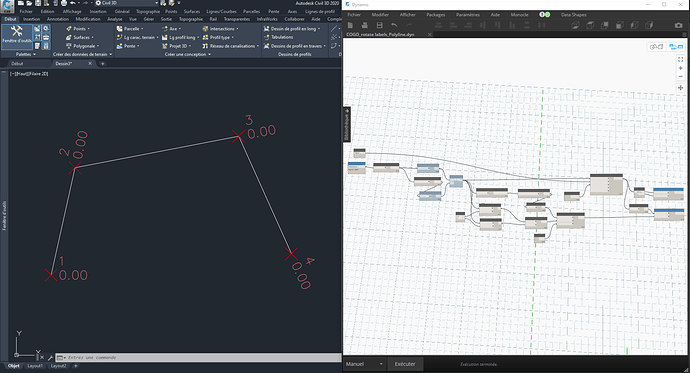

image1920×1040 113 KB

COGO_rotate labels_Polyline.dyn (44.8 KB)

8

Thank you!!!
