Hi All. I have a roof which needs a framing layout. I’ve 6 curves that define the perimeter and 3 which define peaks in the roof. It’s a little complex as each truss changes slightly to create curves but each truss is straight and simple. so I want to generate point on all these curves for each trus…

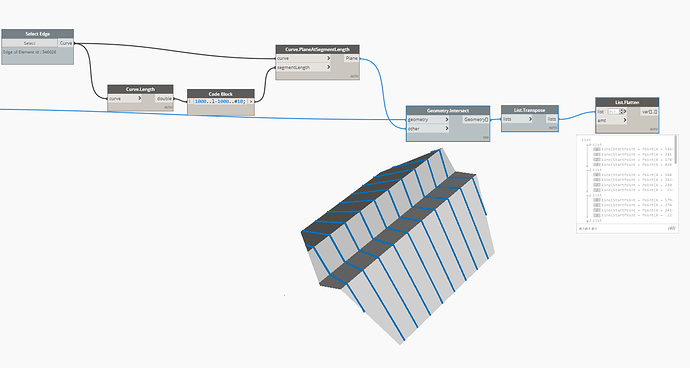

@Wildtypitch it is good to know that it works for you :slight_smile: , to wrap your lines try this: [image]

Best way to create point on multiple curves aligned to the same plane

Elie.Trad February 1, 2022, 3:43pm 4

@Wildtypitch just make sure Geometry.Intersect Lacing is set to Cross Product, you might need to group your curves, try to share your script, and where you are facing problems:
