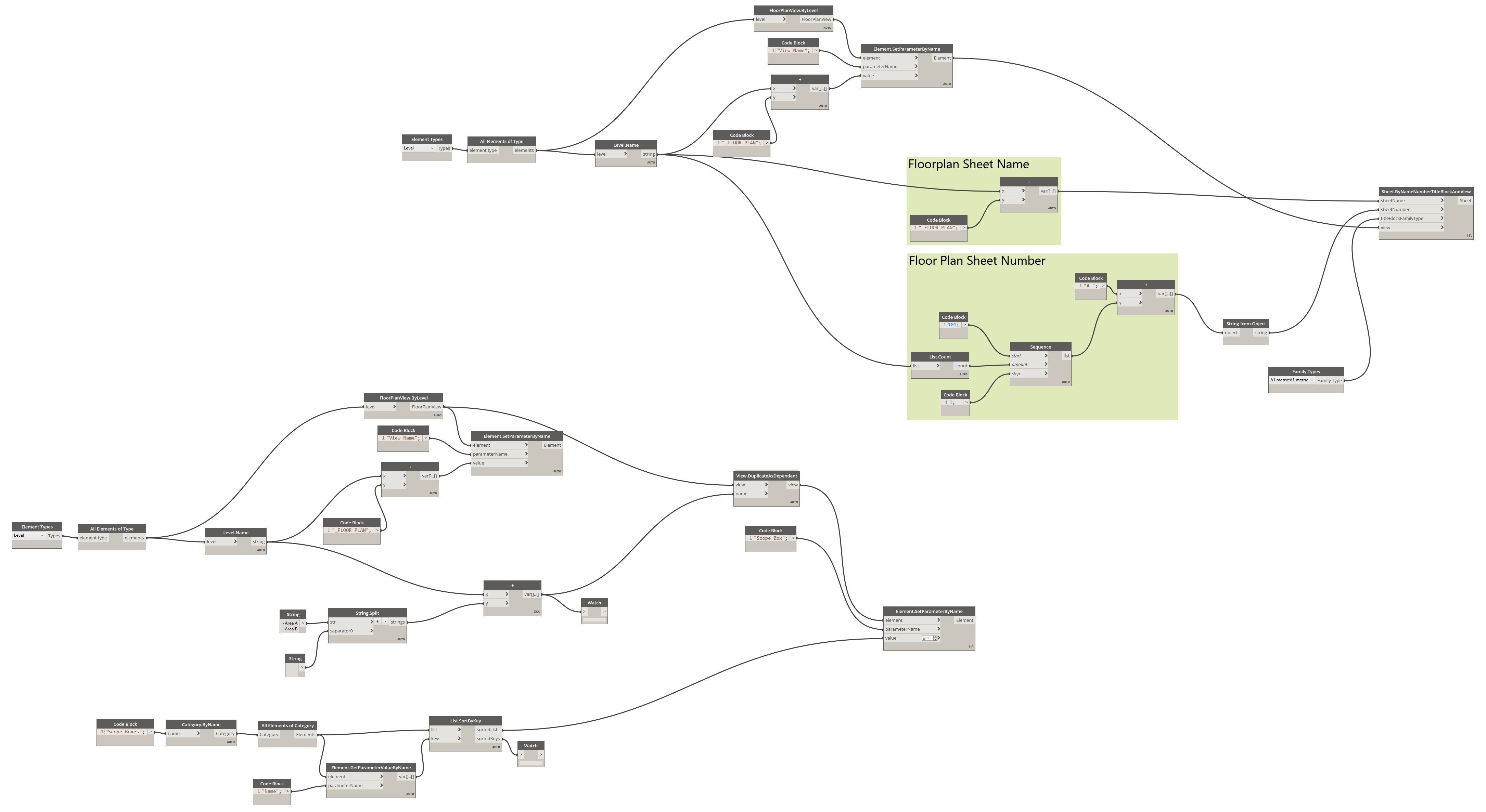

Hi all, I’m trying to create floorplan and dependent floorplan with scope box applied and place the dependent floorplans to the sheets. I’m very new to dynamo. I followed 2 separate tutorials on YouTube and gotten the attached image so far. I would like to know how I can combine the 2 scripts to work as one. Thank you in advance.
@cho.tns I prefer to separate the logic rather than combining them into one.
It would look something like:
- ApplyScopeBox.dyn
- GenerateSheets.dyn
- PlaceViewOnSheets.dyn
I use a similar script but i use a Parameter attached to a View to create
my Sheet Number and Names.
bvs1982’s screenshot can look a little intimidating but he is on the right track. You are using a duplicate set of nodes that you don’t need. All nodes with the same output can just be merged together. From your bottom left part of the graph you can just continue on creating the sheets. Creating the correct Sheet Number and Sheet Name would be crucial.
