Align bounding box with the original objects

Civil3D
, ,
1

Hi,

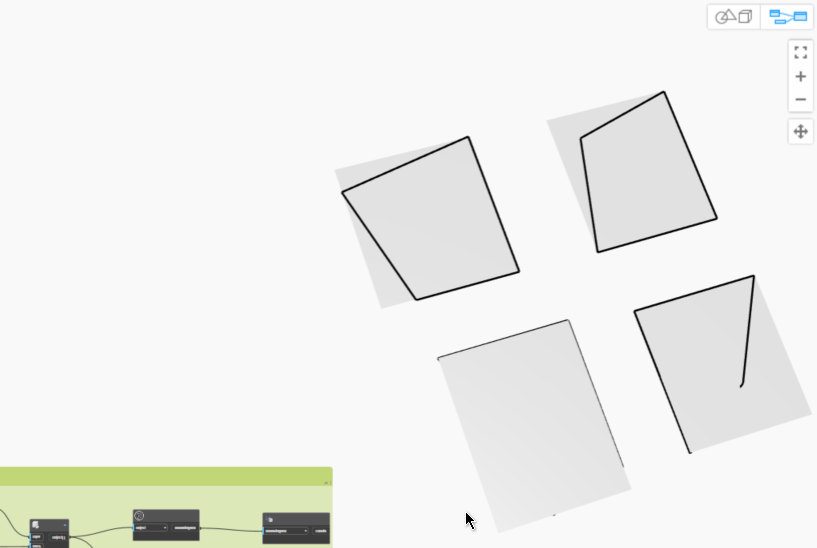

Is there any workaround to align the bounding box to the original objects direction? polylines for example. the polylines are in black and the bounding boxes are in grey.

image817×548 39.5 KB

Aligning Boundary Box.dyn (13.2 KB)
Aligning Boundary Box.dwg (1.6 MB)

2

Your question is too general, it would be helpful to provide some context;

  • What is the problem are you trying to solve
  • What have you tried so far
  • What is your definition of an object’s direction
1 Like
3

I’ve provided the drawing, script and a snip to illustrate, though, will try to elaborate more through answering your question:

  • What is the problem are you trying to solve: I’m trying to align the bounding box to the same orientation of the original objects, in this case, the polylines

  • What have you tried so far: The script is attached, bounding boxes show up respecting the underpinning min and max point, but they are not respecting the orientation of the WCS coordinates.

  • What is your definition of an object’s direction: I mean the orientation, I need the bounding boxes to be as oriented and rotated as the original polylines.

I hope that explains well.
