Issue with Extract corridor feature lines

[JPS]

Extract corridor feature lines is not working, but why i can’t find the problem. The code is in the model, is in the list at extract feature lines within C3D.

Within C3D:
It’s a long list of feature lines more then 200 codes.

Dynamo:
Used CorridorExtensions.GetTkFeatureLinesByCode and Baseline.CorridorFeatureLinesByCode neither one works. Even the Baseline.CorridorFeatureLines gives not all the feature lines. I have tried the next options.

Assembly construction:

[hosneyalaa]

error message
It says the key is wrong

[JPS]

Hi @hosneyalaa,

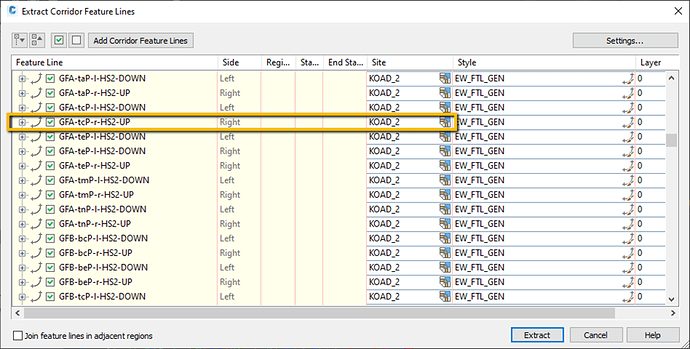

If you take a closer look, you can see that de code “GFA-tcP-r-HS2-UP” can by extracted by the standard C3D function. The code is present.

[hosneyalaa]

If it doesn’t work out for you
You can use the mothed
with python code

[david_licona]

Can you post the log of the C3D Toolkit ? Maybe there are some clues there

[JPS]

Hi All,

I think the problem is that the node Assembly.GetGroups only reads the Baseline Assembly (“Baseline”) and not the Offset Assemblies (Offset - (11) and Offset - (12)).

Python:
I can get the assemblyId.OffsetAssemblies and then the offsetAssembly.Groups. See the link: Working with Assembly Groups | Civil 3D 2022 | Autodesk Knowledge Network

PythonCode_GetOffsetAssembly.txt (3.2 KB)

Two issues:

• the Offsets group ids are the same? But the names are correct.
• the Output is not in the correct format, how do i get the right format, like "AssemblyGroup(Name=…)?
