How to get list of elements from list of strings

Revit
,
1

hi everyone, I’m trying to use set parameter by name for some structural beams,
but after I sorted them natural using (List SortNatural Node), I got list of strings, I need to know how to convert them back to list of elements with the same sorting, so I can use them.
thank you in advanced

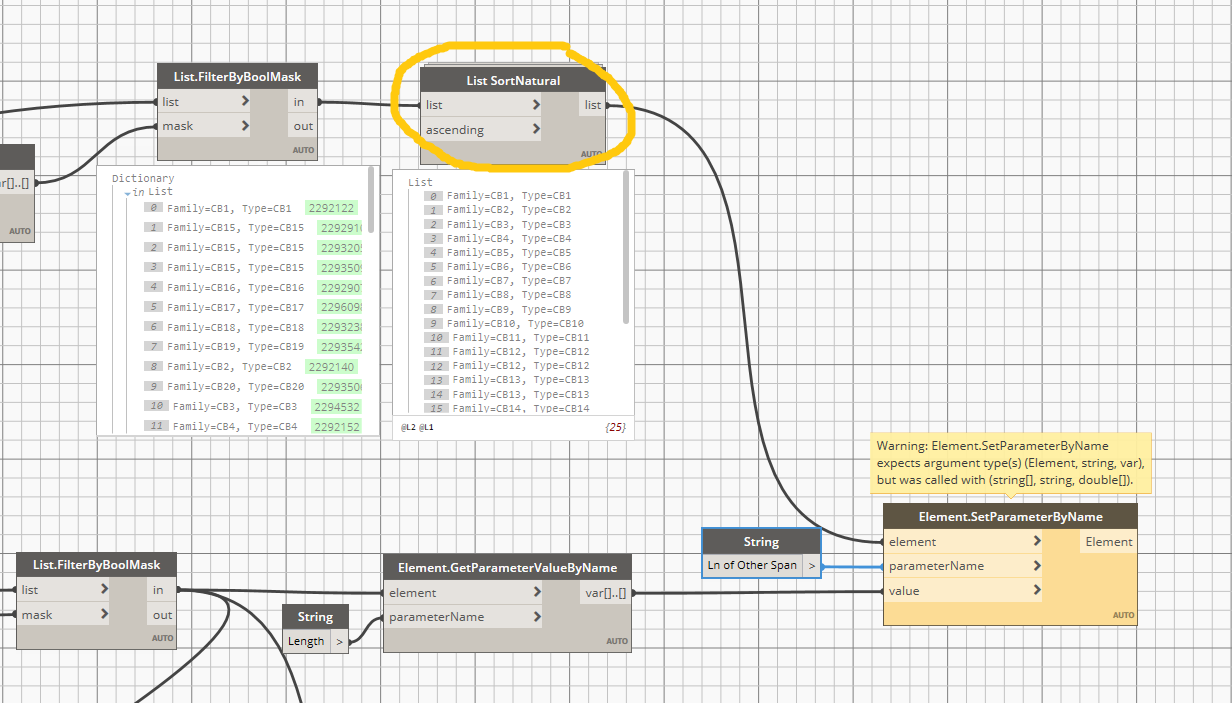

get elements from list of strings
get elements from list of strings1232×703 85.5 KB

2

Hola Amiga @janbarsoum try List.IndexOf and then List.GetItemAtindex to retrieve your original items in the new order, I hope this can help you!!
https://dictionary.dynamobim.com/#/BuiltIn/Action/IndexOf

1 Like
3

Hi @janbarsoum

It seems to function.

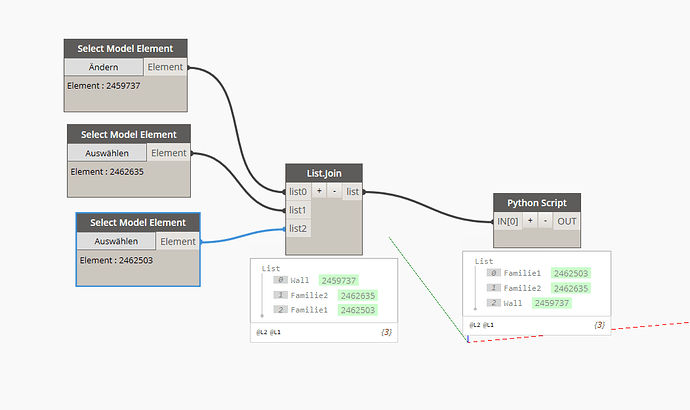

grafik
grafik1052×626 33.2 KB

import sys
import clr
clr.AddReference('ProtoGeometry')
from Autodesk.DesignScript.Geometry import *

elements = IN[0]

import re

def natural_sort(l):
	convert = lambda text: int(text) if text.isdigit() else text.lower()
	alphanum_key = lambda key: [convert(c) for c in re.split('([0-9]+)', key.Name)]
	return sorted(l, key = alphanum_key)

OUT = natural_sort(elements)
3 Likes
4

It works, Thank you so much

1 Like
