Selected view to put it on a new sheet

Revit
1

Hi,

I would like to select a section and to put it onto a new sheet.

I have tried this, but, I can’t find how to convert “section name” to “view”

Capture
Capture.png1454×1176 75.4 KB

2

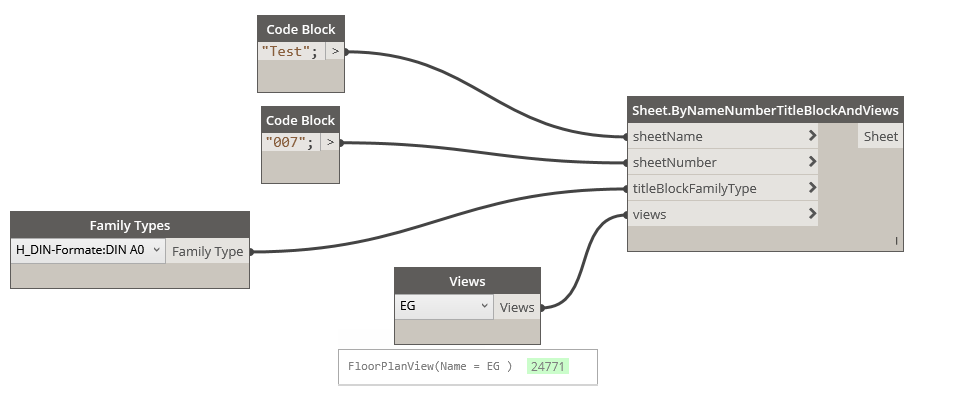

You will have to feed in the views not the view name or parameter:

Plan
Plan.png964×414 21 KB

3

Hi,
Thank you for your answer. I have already tried this, but I would like to do this in revit by selecting the section and create automaticaly the sheet with the view I have selected.

4

I think you have to select the view from a list, and not the model element:

Plan
Plan.png964×414 22.7 KB

5

I have find a solution but, I I select an other section, sheet’s name change and the second section comes on !!

Capture2
Capture2.png1414×1784 119 KB

6

This is because dynamo doesn’t recreate the sheet only changes the input variable (which in this case is view is placed). Close dynamo between runs, use a new node, or better yet use dynamo player.
