How to place geometry on surfaces

Geometry
1

Hi!
I try to create pyramids on a free form surface. I use its UV points as coordination system. But now I have trouble to connect the points correctly to make the pyramids. Any ideas or hints?

Thank you!

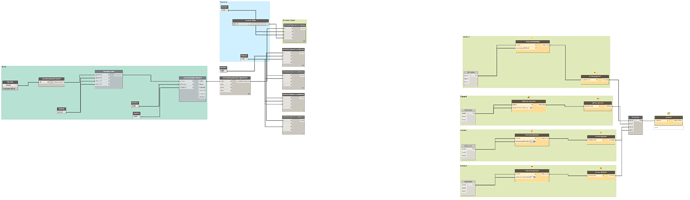

Capture-001.png5702×1660 220 KB

2

input in points can not be the same as the input in connectlasttofirst in the node Polycurve.by.points node

Knipsel.JPG1314×934 182 KB

3

Hi @Patrick.Scholl,
here’s a suggestion : Panel.Quad from Lunchbox package can save you some time.

Pasted image1676×854 105 KB

make sure the lacings are set to longest as shown in the screenshot!

4

Hi Mostafa!
Thank you and you are right. But my target is to place any own geometry to surfaces. Just to understand how it works.

5

Thanks Nico! Now I get no warnings, but not my desired result. Maybe I am lost in connections :wink:

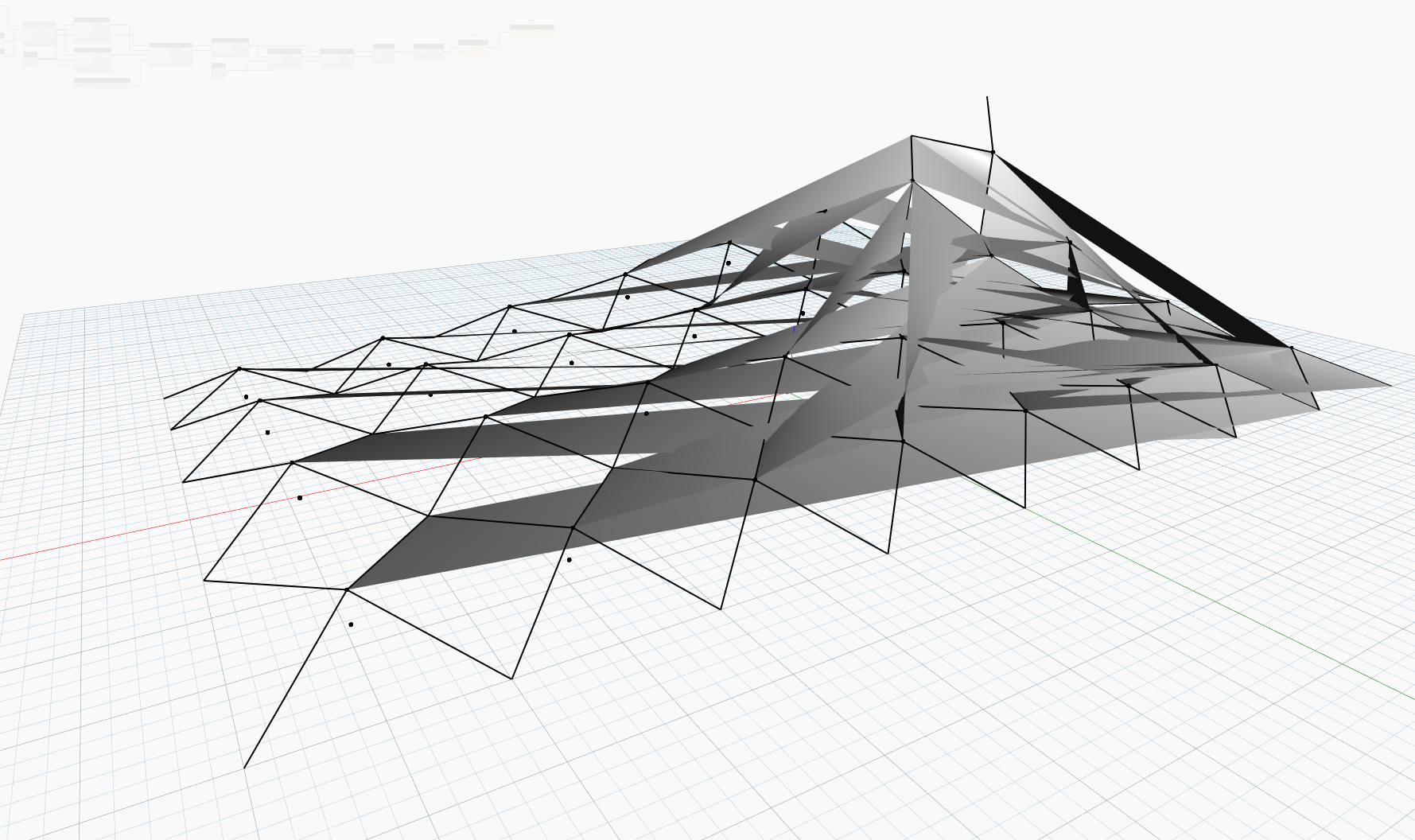

Capture-002.png4350×1448 119 KB

blob.jpg1970×843 515 KB

6

ow I see! maybe geometry.Transform will do what you want :

Pasted image1614×868 83.1 KB

7

a lot of connections:relaxed:
i would set connecter type to curve

Mostafa is good:+1:

1 Like
8

Cool! Thank you!

9

Thanks! I´ll try…

10

Tatataaaa: I did it! many thanks for your help!

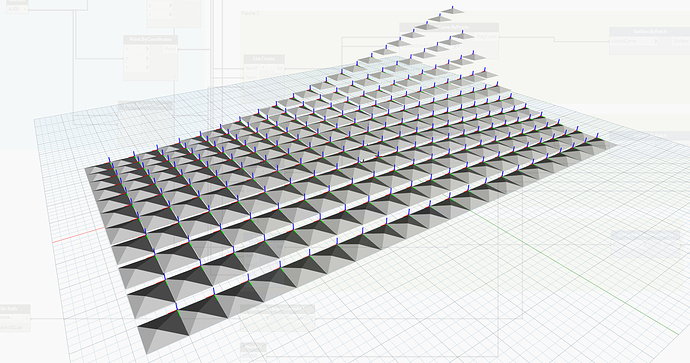

blob.jpg1745×920 664 KB
:grinning:

2 Likes
11

:+1:

12

Hi again! I also tried your first proposal. But I have trouble with the loft nodes.
Do you know why or my mistake?

Capture-003-b.png1779×1056 431 KB

13

Hi @Patrick.Scholl ,

you should try to add a flatten node between Geometry.Scale and Panel.PanelQuad . If it doesn’t solve the issue then could you please upload your .dyn so I can have a closer look at it?

14

Unfortunately not solved. Thank you very much for your time!

wave-002.sat (3.8 KB)
dyn-015-Pyramide-lunchbox.dyn (16.3 KB)

15

@Patrick.Scholl
just delete that List.Flatten Node. There was just a slight list structure difference between your example and mine :

Pasted image1650×873 123 KB

2 Likes
16

Hi Mostafa!

Merci beaucoup! Now it works! :smiley:
