How can I create Adaptive Component On Surface

Packages
#1

I’m trying to create a surface divided into quads which are driven by a distance in UV input, not just numerical division… so that I can automate placed adaptive components to make facades in an irregular pattern like below…

Question01

Question

In fact, it seems like assemble floor plate 803mm x 130mm on the floor. How should I do?

Is there something wrong with my Adaptive Component ?

Thanks.

WanKe-CHD-Q

FloorAssemble V1.1

#2

FloorAssemble V1.1

#3

You are passing an importinstance into the surface input of the AC.ByParamsOnFace node. That’s not going to work.

In this case I think it would make more sense not to create an importinstance at all, but rather create the adaptive components based on point coordinates.

#4

Hello Xin Cheng,

Is it possible for you to share your Custom Nodes.

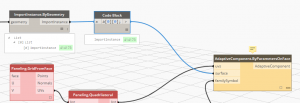

I have noticed that ImportInstance node output is 2D array, you can get the Surface as a single element and try at your end. Look at attached image.

Thanks,

Ritesh

GetFirstItem

#5

Thanks,

I had got the right way to solve my problem.

#6
Thanks,

I had got the right way to solve my problem.






Care to share?

1 Like
